Ram Clutches 88467HDX Clutch Set, Ford 11 X 1-1/16-10
$270.00
set
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before June 7th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
3.8, 10 Spline Count, 1.063" Shaft Diameter
See more details
Key Specs
| MFG. Part # | 88467HDX |
| Brand | Ram Clutches |
| Spline Count | 10 |
| Diameter | 11" |
| Friction Material | Organic |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyRam Clutches 88467HDX Details
Ram Clutches 88467HDX Details
GREAT DRIVEABILITY AND PERFORMANCE TO 450 HORSEPOWER

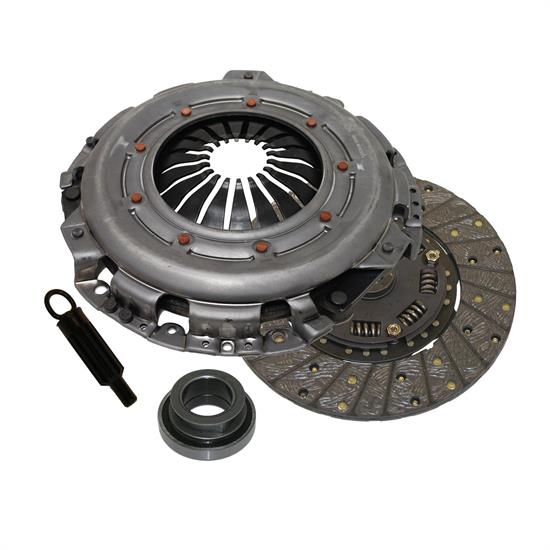

The basic RAM concept of clutch performance is simple: Increased clamp pressure is the single most effective way to manage high horsepower or load, especially in street driven performance cars. We purpose build RAM HDX pressure plates with 30% more clamp pressure than stock. The second important feature is smooth, chatter free operation, which we achieve with premium organic composite disc friction material. Also, HDX discs feature our exclusive 8-spring hub assembly for added load capacity. HDX. Great driveability and control for power levels to 450 horsepower. Sets include pressure plate, disc, release bearing, and alignment tool unless otherwise noted.
- 11 x 1 1/16-10 spline Ford
- Diaphragm
- 6 spring helix hub
- Includes pressure plate, clutch disc, release bearing, alignment tool
- For applications up to 450 hp
Application
Charts
Instruction Sheet (PDF)
Guides & Documents
Ram Clutches 88467HDX Specifications
Ram Clutches 88467HDX Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 88467HDX |
| Brand | Ram Clutches |
| Spline Count | 10 |
| Diameter | 11" |
| Friction Material | Organic |
| GENERAL | |
| Speedway Motors Catalog Part # | 605-88467HDX |
| Shaft Diameter | 1.063" |
| Disc Style | Full face |
| Hub Style | Sprung |
| Pressure Plate Style | Diaphragm |
| Throwout Bearing Included | Yes |
| Throwout Bearing Style | Standard |
| Alignment Tool Included | Yes |
| Pilot Bushing Included | No |
| Flywheel Included | No |
| Counterweight Assist | No |
| Hardware Included | No |
| Max Horsepower Rating | 450 |
| GTIN Code | 809009367004 |
| Sold in Quantity | Kit |
| Input Shaft Diameter | 1.063" |
| Input Spline Quantity | 10 |
