#6058351
Ram Clutches 8351 7.25 Inch Stock Car 3-Disc Clutch, Chevy Pre-1986
$799.00
each
On Backorder
This part is Backordered. We currently do not have an estimate when this item will ship.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Chevy Small Block V8, 7.25" Diameter, Red
See more details
Key Specs
MFG. Part # | 8351 |
Brand | Ram Clutches |
Diameter | 7.25" |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyRam Clutches 8351 Details
Ram Clutches 8351 Details

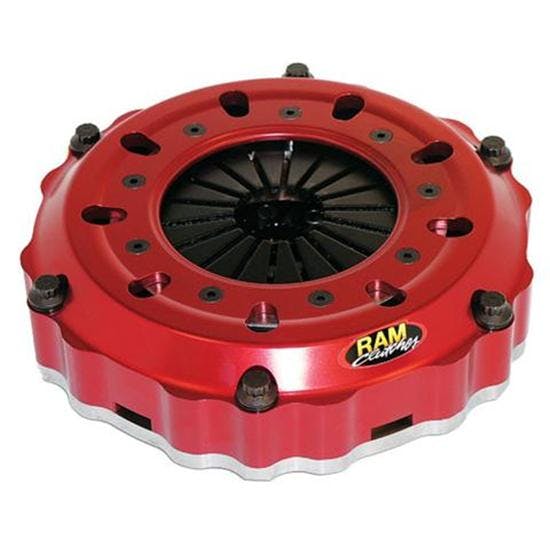

Ram has put their extensive knowledge to work developing this extremely durable 7-1/4" clutch. The four paddle multi disc clutch design has twice the friction material of other 7-1/4" clutch units and features a proprietary friction material known for its outstanding durability. The Ram 7-1/4 will also bolt directly to most existing 7-1/4" flywheels.
Multi-Disc Features:
- New internal drive mechanism provides smooth, driveable engagement
- Twice the friction material of other 7.25" clutches
- Proprietary Ram friction mix known for outstanding durability
- Discs feature 8 rivet hubs for added torque capacity
- Bolts directly to existing 7.25" flywheels
- Chevy applications use Ram throw out bearing 605-48100
- 3-disc Clutch: 9.7 lbs (weight without the button)
Tech Tip: When installing a new multi disc clutch, be sure to follow the manufacturers instructions for correct set-up. You should also replace the pilot bushing/bearing.
Tech Tip: To extend the life of your expensive racing clutch you should not use it to load the car on or in your trailer. The amount of slippage this causes is worse than a night of racing.
Item Details
S/B Chevy Pre-19861-1/8"-10 Spline
Charts
Terms and Policy (PDF)
Guides & Documents
Ram Clutches 8351 Specifications
Ram Clutches 8351 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 8351 |
Brand | Ram Clutches |
Diameter | 7.25" |
GENERAL | |
Pressure Plate Style | Diaphragm |
Counterweight Assist | No |
Sold in Quantity | Each |
Color | Red |
Weight | 14.2 lbs. |
Overall Thickness | 2.60" |
Center to Center | 3.56" |
GTIN Code | 809009353250 |
Spline Count | 10 |
Shaft Diameter | 1.13" |
