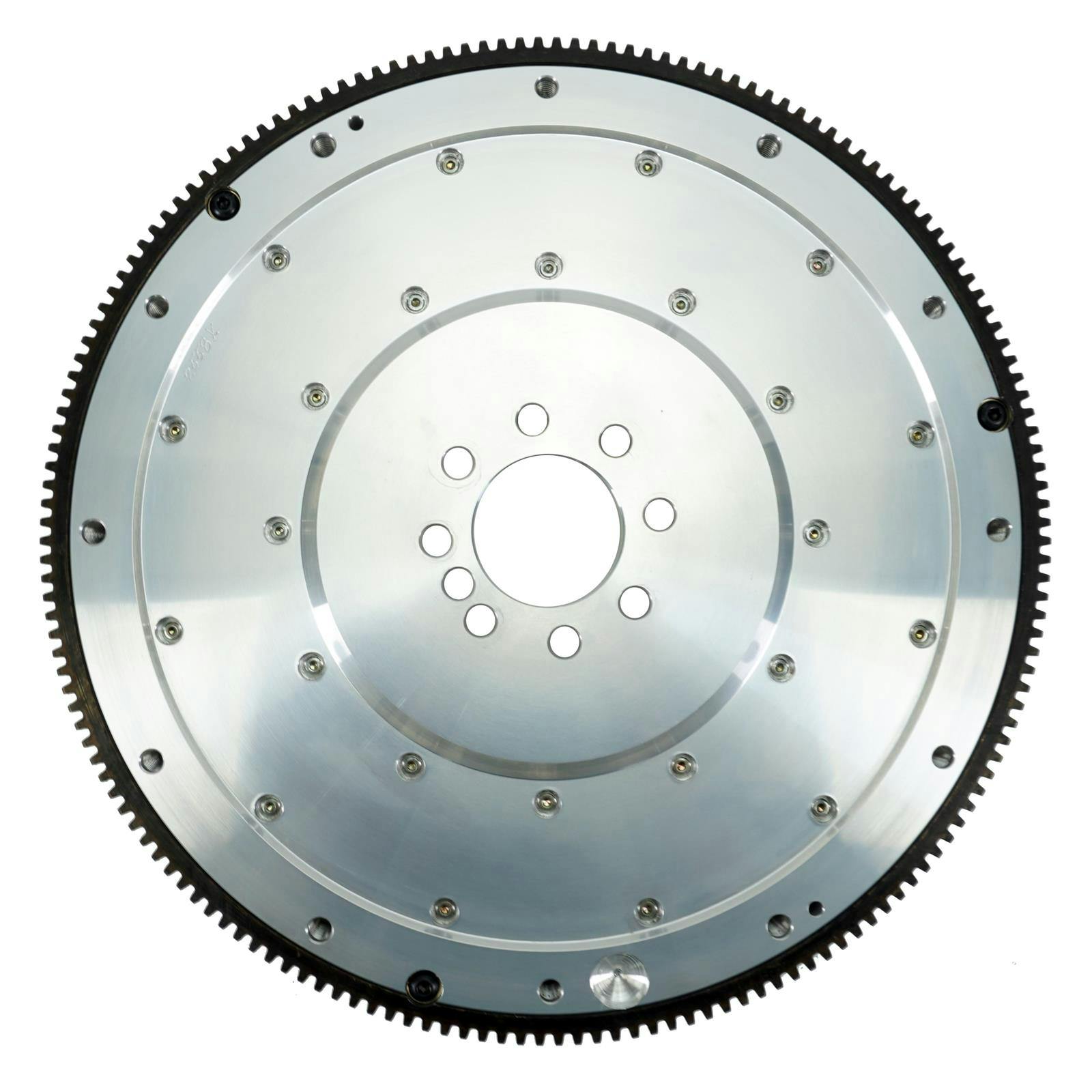

Ram Clutches 2558F GM LS 8 Bolt '0' Balance 168 Tooth Flywheel
Ram Clutches 2558F GM LS 8 Bolt '0' Balance 168 Tooth Flywheel
Ram Clutches

|

#6052558F

Ram Clutches 2558F GM LS 8 Bolt '0' Balance 168 Tooth Flywheel

  • Fits GM LS/LT applications crate engines flat fw
  • Center hole diameter 2.070
  • Internal balance
See More

$389.00

/set

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

14" Outside Diameter, 168 Tooth Count, 1.1 SFI Rating

  • Fits GM LS/LT applications crate engines flat fw
  • Center hole diameter 2.070
  • Internal balance
  • 168 tooth ring gear
  • Clutch bolt patterns: GM metric diaphragm 11 7/8" clutches with 12.625" bolt circle, 10mm – 1.5 thread
See more details

Key Specs

MFG. Part #2558F
Tooth Count168
SFI Rating1.1
Material TypeAluminum
Engine BalanceInternal
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Ram Clutches 2558F Details

RAM billet aluminum flywheels deliver maximum performance, reduced rotating mass, and exceptionally quick engine response. Each aluminum flywheel is CNC machined from premium billet material, surface ground for absolute flatness, and dynamically balanced to precise tolerances. The lightweight aluminum construction significantly decreases rotational inertia, enabling faster rev matching, sharper throttle response, and improved acceleration in high performance or competition focused applications.

RAM aluminum flywheels feature a replaceable ¼" steel friction surface, a fully serviceable ring gear, and are built to meet all SFI safety specifications. Application specific designs support today’s most popular engine swap platforms—including LS, LT, Coyote, and Hemi—as well as Tremec transmission conversions. For drivers and builders seeking the fastest engine response and the advantages of reduced rotating mass, RAM billet aluminum flywheels deliver a proven edge on the street, strip, or track.

When your project demands the lightest, quickest revving solution without compromising durability, choose RAM billet aluminum flywheels for unmatched precision, responsiveness, and reliability. RAM billet aluminum flywheels are engineered and manufactured in the USA. When only the best will do- Choose RAM

  • Fits GM LS/LT applications crate engines flat fw
  • Center hole diameter 2.070
  • Internal balance
  • 168 tooth ring gear
  • Clutch bolt patterns: GM metric diaphragm 11 7/8" clutches with 12.625" bolt circle, 10mm – 1.5 thread
  • 0.815 thickness crank flange to friction surface
  • Meets SFI 1.1 specifications
  • Made in the USA

Application

GM LS 8 Bolt '0' Balance 168 Tooth

Warranty Information

Click for details

Speedway Motors cannot facilitate the return of defective Ram Automotive Co. products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Ram Automotive Co. at +1 (714)-630-2764.

Ram Clutches 2558F Specifications

KEY SPECS
MFG. Part #2558F
BrandRam Clutches
Tooth Count168
SFI Rating1.1
Material TypeAluminum
Engine BalanceInternal
GENERAL
Outside Diameter14"
Weight14 lbs.
Sold in QuantityEach
GTIN Code809009389655
Rear Main Seal Style1-piece
Flywheel MaterialBillet aluminum
Replaceable Friction SurfaceYes
Pressure Plate StyleDiaphragm

Questions & Answers

Be the first to ask a question.

Fitment

  • GM LM4

  • GM LSA

  • GM LM7

  • GM LQ9

  • 6.2 Chevy LS V8

  • GM LM7

  • GM LQ9

  • 6.2 Chevy LS V8

  • GM LM7

  • GM LQ9

  • 6.2 Chevy LS V8

  • GM L76

  • GM LC9

  • GM LMG

  • GM LY5

  • GM LY5

  • GM LM7

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • GM LS4

  • GM LS4

  • 4.8 Chevy LS V8

  • GM LM7

  • 4.8 Chevy LS V8

  • GM L20

  • GM LM7

  • GM LY2

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LQ9

  • GM LQ4

  • GM LM7

  • GM LQ4

  • GM LQ9

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LM4

  • GM LMG

  • GM LY5

  • GM LM7

  • GM L59

  • GM LM7

  • GM LC9

  • GM LMG

  • GM LY5

  • GM LC9

  • GM LMG

  • GM LMG

  • GM LY5

  • GM LQ4

  • GM LMG

  • GM LY5

  • 4.8 Chevy LS V8

  • GM L59

  • GM LM7

  • 4.8 Chevy LS V8

  • GM LMG

  • GM LY5

  • 6.2 Chevy LS V8

  • GM LC9

  • GM LMG

  • GM LC9

  • GM LMG

  • GM LMG

  • GM LY5

  • GM LH6

  • GM LM4

  • GM LM4

  • GM LM4

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L33

  • GM LM7

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L33

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L33

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L33

  • GM LQ4

  • GM L20

  • GM LC9

  • GM LMG

  • GM L33

  • GM L59

  • GM LM7

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LM7

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L20

  • GM LM7

  • GM LY2

  • GM LC9

  • GM LMG

  • GM LM7

  • GM L59

  • GM LM7

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • 6.2 Chevy LS V8

  • GM LH8

  • GM LH8
