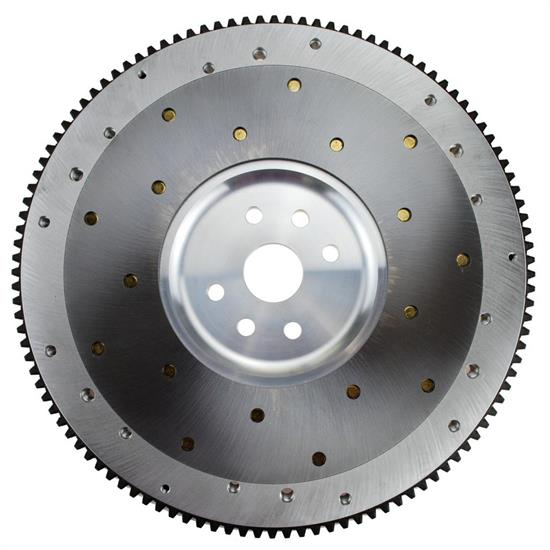

Ram Clutches 2549 Flathead 49-53 8BA 0 Balance 112 Tooth Flywheel

The flywheel is the foundation of the clutch system, and because it is an energy storage device, also determines the amount of power available to launch the car. A heavy flywheel stores more energy as it spins than a light flywheel. If your engine and gearing combination requires more power or inertia to make the car launch without bogging the motor, you will want a heavier flywheel. Keep in mind, though, that a heavier flywheel will be slower to accelerate through the gears. A lighter flywheel creates less inertia at launch, but will accelerate quicker through the gears. In order to effectively use a lighter flywheel, you must consider the car weight, operating RPM of the engine, and most importantly, the gearing. Too little gear will cause the engine to nose over or ‘bog’ on launch.

The choice for most all out competition vehicles, RAM billet aluminum flywheels are CNC machined from certified materials and exceed SFI standards. A key feature of a RAM aluminum flywheel is the ¼ inch steel friction insert*. A well tuned competition clutch system has a predetermined amount of slippage at launch and on the gear changes. The flywheel insert must have enough mass to absorb the heat generated by slippage without distortion; ensuring maximum clutch life and consistent performance. Thinner inserts can warp and lift causing uneven engagement across the clutch disc. The thicker insert remains flatter and dissipates the heat better. Each flywheel is precision ground after the steel insert is installed to ensure the friction surface is parallel with the crankshaft flange for minimum runout and to provide the optimum mating surface for your choice of clutch disc.

• Fits GM 10.5, 11", Ford long style patterns
• 17 pounds
• Internal balance
• 112 tooth ring gear
• Meets SFI 1.1 specifications
• Made in the USA

Clutches, Flywheels and release bearings are STRICTLY FACTORY WARRANTY ONLY. Customer must return the unit to RAM for evaluation and inspection.

For a full list of warranty information please see our warranty information here
