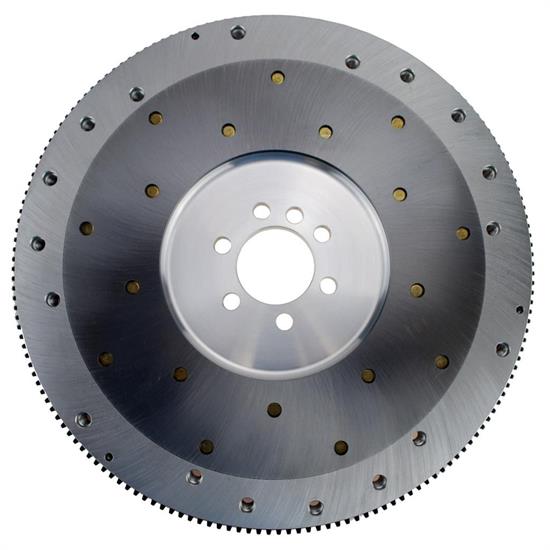

Ram Clutches 2530 Chevrolet 86-Up Ext. Balance 168 Tooth Flywheel

#6052530

Ram Clutches 2530 Chevrolet 86-Up Ext. Balance 168 Tooth Flywheel

Fits Chevrolet applications 1986-up
Center hole diameter 2.070 (1 pc rear main seal)
External balance

$409.00

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

14" Outside Diameter, 168 Tooth Count, 1.1 SFI Rating

Fits Chevrolet applications 1986-up
Center hole diameter 2.070 (1 pc rear main seal)
External balance
168 tooth ring gear
Clutch bolt patterns: GM 10.5", 11" clutches with 11.625", 12.625" bolt circles 3/8-16 thread, Ford Long Style 11" clutches with 12.375" bolt circle, 3/8-16 thread

See more details

Key Specs

MFG. Part #	2530
Tooth Count	168
SFI Rating	1.1
Material Type	Aluminum
Engine Balance	External

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Ram Clutches 2530 Details

RAM billet aluminum flywheels deliver maximum performance, reduced rotating mass, and exceptionally quick engine response. Each aluminum flywheel is CNC machined from premium billet material, surface ground for absolute flatness, and dynamically balanced to precise tolerances. The lightweight aluminum construction significantly decreases rotational inertia, enabling faster rev matching, sharper throttle response, and improved acceleration in high performance or competition focused applications.

RAM aluminum flywheels feature a replaceable ¼” steel friction surface, a fully serviceable ring gear, and are built to meet all SFI safety specifications. Application specific designs support today’s most popular engine swap platforms—including LS, LT, Coyote, and Hemi—as well as Tremec transmission conversions. For drivers and builders seeking the fastest engine response and the advantages of reduced rotating mass, RAM billet aluminum flywheels deliver a proven edge on the street, strip, or track.

When your project demands the lightest, quickest revving solution without compromising durability, choose RAM billet aluminum flywheels for unmatched precision, responsiveness, and reliability. RAM billet aluminum flywheels are engineered and manufactured in the USA. When only the best will do- Choose RAM.

Fits Chevrolet applications 1986-up
Center hole diameter 2.070 (1 pc rear main seal)
External balance
168 tooth ring gear
Clutch bolt patterns: GM 10.5", 11" clutches with 11.625", 12.625" bolt circles 3/8-16 thread, Ford Long Style 11" clutches with 12.375" bolt circle, 3/8-16 thread
0.855 thickness crank flange to friction surface
16 pounds
Meets SFI 1.1 specifications
Made in the USA

Application

Chevrolet 86-Up External Balance 168 Tooth

Warranty Information

Click for details

Speedway Motors cannot facilitate the return of defective Ram Automotive Co. products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Ram Automotive Co. at +1 (714)-630-2764.

CA Prop 65

Ram Clutches 2530 Specifications

KEY SPECS
MFG. Part #	2530
Brand	Ram Clutches
Tooth Count	168
SFI Rating	1.1
Material Type	Aluminum
Engine Balance	External

GENERAL
Outside Diameter	14"
Weight	16 lbs.
Sold in Quantity	Each
GTIN Code	809009112659
Rear Main Seal Style	1-piece
Flywheel Material	Billet aluminum
Replaceable Friction Surface	Yes
Pressure Plate Style	Borg & Beck/Diaphragm/Long

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 1 Answer

Sort Questions

I am looking to get this flywheel for my 1994 c1500 with a 305 and swapping in a stock replacement nv3500 and want to make sure this will work with it and if the ram clutches 92760 clutch set will work with this flywheel? also have an additional question are the back of the crankshafts on a 1994 305 the same for truck with a manual transmission and an automatic for installing a pilot bearing for a manual conversion?

by Tim M.

• 2 years ago

1 answer

View Answer

1 of 1 questions shown

Fitment

1991-1993 Buick Roadmaster

Gen 1 L03 Small Block Chevy

1994 Buick Roadmaster

Gen 1 L05 Small Block Chevy

1995-1996 Buick Roadmaster

Gen 2 LT1 Small Block Chevy

1991-1992 Cadillac Brougham

1-Piece Rear Main 305 LB9

1999-2000 Cadillac Escalade

Vortec L31 Small Block Chevy

1990-1992 Cadillac Fleetwood

Gen 1 L05 Small Block Chevy

1993-1996 Cadillac Fleetwood

Gen 2 LT1 Small Block Chevy

1973-1975 Chevy Bel Air

Gen 1 L48 Small Block Chevy

1972 Chevy Blazer

Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1973-1974 Chevy Blazer

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1987 Chevy Blazer

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988-1994 Chevy Blazer

Gen 1 L05 Small Block Chevy

1973-1975 Chevy C10

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1976-1982 Chevy C10

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983 Chevy C10

Gen 1 LG3 Small Block Chevy

1984 Chevy C10

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1985 Chevy C10

Gen 1 LG3 Small Block Chevy

1986 Chevy C10

1-Piece Rear Main 305 LG4
Gen 1 L05 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1972-1975 Chevy C10 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1976-1982 Chevy C10 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983 Chevy C10 Suburban

2-Piece Rear Main 305 LG4

1984 Chevy C10 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L48 Small Block Chevy

1985 Chevy C10 Suburban

2-Piece Rear Main 305 LG4

1986 Chevy C10 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1982-1987 Chevy C15

Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1988 Chevy C15

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988-1995 Chevy C1500

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1996 Chevy C1500

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1997-1999 Chevy C1500

Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1992-1995 Chevy C1500 Suburban

Gen 1 L05 Small Block Chevy

1996-1999 Chevy C1500 Suburban

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1972-1976 Chevy C20

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1982 Chevy C20

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983 Chevy C20

2-Piece Rear Main 305 LG4

1984 Chevy C20

2-Piece Rear Main 305 LG4
Gen 1 L48 Small Block Chevy

1985 Chevy C20

2-Piece Rear Main 305 LG4

1986 Chevy C20

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1987 Chevy C20

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1972-1975 Chevy C20 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1976-1978 Chevy C20 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1979-1982 Chevy C20 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1983 Chevy C20 Suburban

2-Piece Rear Main 305 LG4

1984 Chevy C20 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L82 Small Block Chevy

1985 Chevy C20 Suburban

2-Piece Rear Main 305 LG4

1986 Chevy C20 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988-1995 Chevy C2500

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1996 Chevy C2500

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1997-1998 Chevy C2500

Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1999 Chevy C2500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1992-1995 Chevy C2500 Suburban

Gen 1 L05 Small Block Chevy

1996-1999 Chevy C2500 Suburban

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1972-1977 Chevy C30

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1978-1979 Chevy C30

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1980-1982 Chevy C30

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1984 Chevy C30

Gen 1 L46 Small Block Chevy

1986 Chevy C30

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1983-1987 Chevy C35

Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1988-1995 Chevy C35

Gen 1 L05 Small Block Chevy

1996-1999 Chevy C35

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1988-1995 Chevy C3500

Gen 1 L05 Small Block Chevy

1996-1999 Chevy C3500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1973-1975 Chevy Camaro

Gen 1 L48 Small Block Chevy

1976-1982 Chevy Camaro

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983-1984 Chevy Camaro

2-Piece Rear Main 305 LG4

1985 Chevy Camaro

2-Piece Rear Main 305 LB9
2-Piece Rear Main 305 LG4
Gen 1 L69 Small Block Chevy

1986 Chevy Camaro

1-Piece Rear Main 305 LB9
2-Piece Rear Main 305 LG4

1987-1991 Chevy Camaro

1-Piece Rear Main 305 LB9
Gen 1 L98 Small Block Chevy

1992 Chevy Camaro

1-Piece Rear Main 305 LB9
Gen 1 L98 Small Block Chevy
Gen 2 LT1 Small Block Chevy

1993-1995 Chevy Camaro

Gen 2 LT1 Small Block Chevy

1996-1999 Chevy Camaro

Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy

1973-1976 Chevy Caprice

Gen 1 L48 Small Block Chevy

1977 Chevy Caprice

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1978-1982 Chevy Caprice

2-Piece Rear Main 305 LG4
Gen 1 L48 Small Block Chevy

1983 Chevy Caprice

2-Piece Rear Main 305 LG4

1984 Chevy Caprice

2-Piece Rear Main 305 LG4
Gen 1 L48 Small Block Chevy

1985 Chevy Caprice

2-Piece Rear Main 305 LG4

1986 Chevy Caprice

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1987-1993 Chevy Caprice

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1994-1995 Chevy Caprice

Gen 2 LT1 Small Block Chevy

1996 Chevy Caprice

Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy

1973 Chevy Chevelle

Gen 1 L48 Small Block Chevy

1973-1974 Chevy Corvette

Gen 1 L48 Small Block Chevy

1980 Chevy Corvette

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1984 Chevy Corvette

Gen 1 L83 Small Block Chevy

1986-1991 Chevy Corvette

Gen 1 L98 Small Block Chevy

1992-1995 Chevy Corvette

Gen 2 LT1 Small Block Chevy

1996 Chevy Corvette

Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy

1973-1975 Chevy El Camino

Gen 1 L48 Small Block Chevy

1976-1977 Chevy El Camino

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1978-1982 Chevy El Camino

Gen 1 LG3 Small Block Chevy

1983 Chevy El Camino

2-Piece Rear Main 305 LG4

1984 Chevy El Camino

2-Piece Rear Main 305 LG4
Gen 1 L81 Small Block Chevy

1985 Chevy El Camino

2-Piece Rear Main 305 LG4

1986 Chevy El Camino

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy

1987 Chevy El Camino

Gen 1 L03 Small Block Chevy

1996-1999 Chevy Express 1500

Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

2000-2002 Chevy Express 1500

Vortec L30 Small Block Chevy

1996 Chevy Express 2500

Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1997 Chevy Express 2500

Gen 2 LT1 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1998-1999 Chevy Express 2500

Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

2000-2002 Chevy Express 2500

Vortec L30 Small Block Chevy

1996-1999 Chevy Express 3500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1975-1976 Chevy G10

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1982 Chevy G10

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983 Chevy G10

2-Piece Rear Main 305 LG4

1984 Chevy G10

2-Piece Rear Main 305 LG4
Gen 1 L82 Small Block Chevy

1985 Chevy G10

2-Piece Rear Main 305 LG4

1986 Chevy G10

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1987-1993 Chevy G10

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1994-1995 Chevy G10

Gen 1 L03 Small Block Chevy

1972-1974 Chevy G10 Van

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1975-1976 Chevy G20

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1982 Chevy G20

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983-1985 Chevy G20

2-Piece Rear Main 305 LG4

1986 Chevy G20

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1987-1995 Chevy G20

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1972 Chevy G20 Van

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1973-1974 Chevy G20 Van

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L82 Small Block Chevy

1975-1977 Chevy G30

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1978-1979 Chevy G30

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1980-1981 Chevy G30

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1982 Chevy G30

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1985 Chevy G30

2-Piece Rear Main 305 LG4

1986-1995 Chevy G30

Gen 1 L05 Small Block Chevy

1996 Chevy G30

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1972-1974 Chevy G30 Van

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1973-1976 Chevy Impala

Gen 1 L48 Small Block Chevy

1977-1982 Chevy Impala

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983-1985 Chevy Impala

2-Piece Rear Main 305 LG4

1994-1995 Chevy Impala

Gen 2 LT1 Small Block Chevy

1996 Chevy Impala

Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy

1972-1976 Chevy K10

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1979 Chevy K10

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1980 Chevy K10

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1981-1982 Chevy K10

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983-1985 Chevy K10

2-Piece Rear Main 305 LG4

1986 Chevy K10

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1972-1975 Chevy K10 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1976-1982 Chevy K10 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983-1985 Chevy K10 Suburban

2-Piece Rear Main 305 LG4

1986 Chevy K10 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988-1995 Chevy K1500

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1996-1999 Chevy K1500

Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1992-1995 Chevy K1500 Suburban

Gen 1 L05 Small Block Chevy

1996-1999 Chevy K1500 Suburban

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1972-1976 Chevy K20

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1978 Chevy K20

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1979 Chevy K20

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1980 Chevy K20

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1981-1982 Chevy K20

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1985 Chevy K20

2-Piece Rear Main 305 LG4

1986 Chevy K20

Gen 1 L05 Small Block Chevy

1972-1976 Chevy K20 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1978 Chevy K20 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1979-1982 Chevy K20 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1985 Chevy K20 Suburban

2-Piece Rear Main 305 LG4

1986 Chevy K20 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988-1995 Chevy K2500

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1996 Chevy K2500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1997-1998 Chevy K2500

Gen 1 L05 Small Block Chevy
Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1999 Chevy K2500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1992-1995 Chevy K2500 Suburban

Gen 1 L05 Small Block Chevy

1996-1999 Chevy K2500 Suburban

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1972-1974 Chevy K30

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1982 Chevy K30

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1986 Chevy K30

Gen 1 L05 Small Block Chevy

1988-1995 Chevy K3500

Gen 1 L05 Small Block Chevy

1996-1999 Chevy K3500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1975-1976 Chevy K5 Blazer

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1981 Chevy K5 Blazer

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1982 Chevy K5 Blazer

2-Piece Rear Main 305 LG4
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1983 Chevy K5 Blazer

2-Piece Rear Main 305 LG4

1984 Chevy K5 Blazer

2-Piece Rear Main 305 LG4
Gen 1 L48 Small Block Chevy

1985 Chevy K5 Blazer

2-Piece Rear Main 305 LG4

1986 Chevy K5 Blazer

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1973-1975 Chevy Laguna

Gen 1 L48 Small Block Chevy

1976 Chevy Laguna

Gen 1 LG3 Small Block Chevy

1973-1975 Chevy Malibu

Gen 1 L48 Small Block Chevy

1976-1982 Chevy Malibu

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983 Chevy Malibu

2-Piece Rear Main 305 LG4

1976-1977 Chevy Monte Carlo

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1978-1985 Chevy Monte Carlo

2-Piece Rear Main 305 LG4

1986 Chevy Monte Carlo

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy

1987-1988 Chevy Monte Carlo

Gen 1 L03 Small Block Chevy

1975 Chevy Monza

Gen 1 L48 Small Block Chevy

1976-1979 Chevy Monza

Gen 1 LG3 Small Block Chevy

1973-1974 Chevy Nova

Gen 1 L48 Small Block Chevy

1976-1979 Chevy Nova

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1975-1979 Chevy P30

Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1986-1995 Chevy P30

Gen 1 L05 Small Block Chevy

1996-1999 Chevy P30

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1972 Chevy P30 Van

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1973-1974 Chevy P30 Van

Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1987 Chevy R10

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1987 Chevy R10 Suburban

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988 Chevy R10 Suburban

Gen 1 L05 Small Block Chevy

1989-1991 Chevy R1500 Suburban

Gen 1 L05 Small Block Chevy

1987 Chevy R20

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1988 Chevy R20

Gen 1 L05 Small Block Chevy

1987-1988 Chevy R20 Suburban

Gen 1 L05 Small Block Chevy

1995 Chevy R25

Gen 1 L05 Small Block Chevy

1996-1999 Chevy R25

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1989 Chevy R2500

Gen 1 L05 Small Block Chevy

1989-1991 Chevy R2500 Suburban

Gen 1 L05 Small Block Chevy

1987-1988 Chevy R30

Gen 1 L05 Small Block Chevy

1989-1991 Chevy R3500

Gen 1 L05 Small Block Chevy

1995 Chevy Silverado

Gen 1 L05 Small Block Chevy

1996-1999 Chevy Silverado

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1987-1994 Chevy Suburban

Gen 1 L05 Small Block Chevy

1995 Chevy Suburban 1500

Gen 1 L05 Small Block Chevy

1996-1999 Chevy Suburban 1500

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1995 Chevy Tahoe

Gen 1 L05 Small Block Chevy

1996-1999 Chevy Tahoe

Gen 1 L05 Small Block Chevy
Vortec L31 Small Block Chevy

1987 Chevy V10

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy

1987-1988 Chevy V10 Suburban

Gen 1 L05 Small Block Chevy

1989-1991 Chevy V1500 Suburban

Gen 1 L05 Small Block Chevy

1987 Chevy V20

Gen 1 L05 Small Block Chevy

1987-1988 Chevy V20 Suburban

Gen 1 L05 Small Block Chevy

1989-1991 Chevy V2500 Suburban

Gen 1 L05 Small Block Chevy

1987-1988 Chevy V30

Gen 1 L05 Small Block Chevy

1989-1991 Chevy V3500

Gen 1 L05 Small Block Chevy

1998-1999 GMC C1500

Vortec L31 Small Block Chevy

1992-1999 GMC C1500 Suburban

Vortec L31 Small Block Chevy

1967-1972 GMC C25/C2500 Pickup

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1967-1972 GMC C25/C2500 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1967-1974 GMC C35/C3500 Pickup

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1987-1995 GMC G1500

Gen 1 L05 Small Block Chevy

1987-1995 GMC G2500

Gen 1 L05 Small Block Chevy

1987-1994 GMC G3500

Gen 1 L05 Small Block Chevy

1995-1996 GMC G3500

Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1986 GMC Jimmy

Gen 1 L05 Small Block Chevy

1987 GMC Jimmy

Gen 1 L03 Small Block Chevy
Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1988-1990 GMC Jimmy

Gen 1 L05 Small Block Chevy

1975-1978 GMC K15

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1975-1978 GMC K15 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1967-1974 GMC K15/K1500 Pickup

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1967-1974 GMC K15/K1500 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1998-1999 GMC K1500

Vortec L31 Small Block Chevy

1979-1980 GMC K1500 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1981-1986 GMC K1500 Suburban

Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1992-1999 GMC K1500 Suburban

Vortec L31 Small Block Chevy

1975-1978 GMC K25

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1975-1978 GMC K25 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1967-1974 GMC K25/K2500 Pickup

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1967-1974 GMC K25/K2500 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1986 GMC K2500

Gen 1 L05 Small Block Chevy

1996-2000 GMC K2500

Vortec L31 Small Block Chevy

1979-1986 GMC K2500 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1992-1993 GMC K2500 Suburban

Gen 1 L05 Small Block Chevy

1994-1999 GMC K2500 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1967-1974 GMC K35/K3500 Pickup

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1987 GMC R1500 Suburban

Vortec L31 Small Block Chevy

1988-1991 GMC R1500 Suburban

Gen 1 L98 Small Block Chevy

1996-2000 GMC Savana 1500

Vortec L31 Small Block Chevy

1973-1977 GMC Sprint

Gen 1 LM1 Small Block Chevy

1960-1966 GMC Suburban

Gen 1 L69 Small Block Chevy

1967 GMC Suburban

Gen 1 L46 Small Block Chevy

1987-1991 GMC V1500 Suburban

350 Chevy Small Block V8
Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1987 GMC V2500

350 Chevy Small Block V8
Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1987-1991 GMC V2500 Suburban

350 Chevy Small Block V8
Gen 1 L05 Small Block Chevy
Gen 1 L98 Small Block Chevy

1987-1991 GMC V3500

350 Chevy Small Block V8

1992-2011 GMC Yukon

Vortec L31 Small Block Chevy

1975-1977 Oldsmobile Starfire

305 Chevy Small Block V8

1985 Pontiac Firebird

2-Piece Rear Main 305 LB9
2-Piece Rear Main 305 LG4
Gen 1 L69 Small Block Chevy
