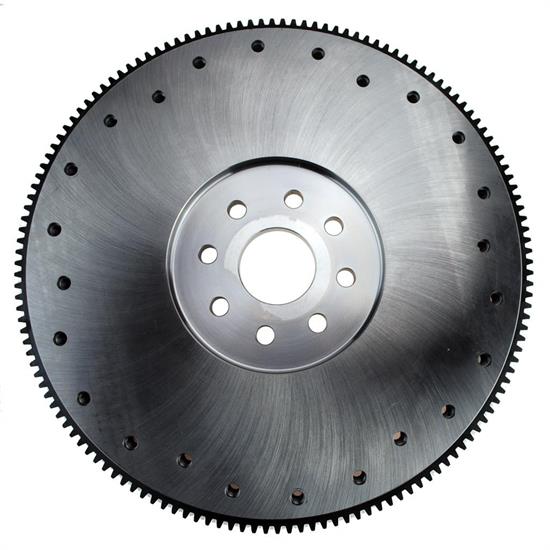

Ram Clutches 1593 Chrysler 8 Bolt Int. Balance 143 Tooth Flywheel
Ram Clutches 1593 Chrysler 8 Bolt Int. Balance 143 Tooth Flywheel
Ram Clutches

|

#6051593

Ram Clutches 1593 Chrysler 8 Bolt Int. Balance 143 Tooth Flywheel

  • Fits Chrysler 8 bolt crank applications through Gen 2
  • Center hole diameter 2.160"
  • Internal balance
See More

$359.00

/each

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

14" Outside Diameter, 143 Tooth Count, 1.1 SFI Rating

  • Fits Chrysler 8 bolt crank applications through Gen 2
  • Center hole diameter 2.160"
  • Internal balance
  • 143 tooth ring gear
  • Clutch bolt patterns: Chrysler 10.5", 10.95" clutches with 11.625" bolt circle, 3/8-16 thread, Chrysler 11" clutches with 12.625" bolt circle, 3/8-16 thread, Ford Long Style 11" clutches with 12.375" bolt circle, 3/8-16 thread
See more details

Key Specs

MFG. Part #1593
Tooth Count143
SFI Rating1.1
Material TypeSteel
Engine BalanceInternal
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Ram Clutches 1593 Details

RAM billet steel flywheels deliver the uncompromising performance and long term reliability required for modern street performance applications. Each flywheel is precision machined, surface ground, and dynamically balanced to exacting tolerances, ensuring a perfect fit right out of the box. The robust steel construction provides the ideal inertia for smooth launches and exceptional low speed drivability.

Designed for performance enthusiasts, engine builders, and swap specialists, RAM steel flywheels feature a serviceable ring gear and meet all SFI safety specifications. Application specific options support popular engine swap platforms—including LS, LT, Coyote, and Hemi—as well as Tremec transmission conversions. Whether upgrading for street performance, track use, or a custom build, RAM delivers the premium flywheel solution trusted by professionals. RAM billet steel flywheels are engineered and manufactured in the USA. When only the best will do- Choose RAM.

  • Fits Chrysler 8 bolt crank applications through Gen 2
  • Center hole diameter 2.160"
  • Internal balance
  • 143 tooth ring gear
  • Clutch bolt patterns: Chrysler 10.5", 10.95" clutches with 11.625" bolt circle, 3/8-16 thread, Chrysler 11" clutches with 12.625" bolt circle, 3/8-16 thread, Ford Long Style 11" clutches with 12.375" bolt circle, 3/8-16 thread
  • 1.000" thickness crank flange to friction surface
  • 36 pounds
  • Meets SFI 1.1 specifications
  • Made in the USA

Application

Chrysler 8 Bolt Internal Balance 143 Tooth

Warranty Information

Click for details

Speedway Motors cannot facilitate the return of defective Ram Automotive Co. products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Ram Automotive Co. at +1 (714)-630-2764.

Ram Clutches 1593 Specifications

KEY SPECS
MFG. Part #1593
BrandRam Clutches
Tooth Count143
SFI Rating1.1
Material TypeSteel
Engine BalanceInternal
GENERAL
Outside Diameter14"
Weight36 lbs.
Sold in QuantityEach
GTIN Code809009111058
Flywheel MaterialBillet steel
Replaceable Friction SurfaceNo
Pressure Plate StyleBorg & Beck/Long
