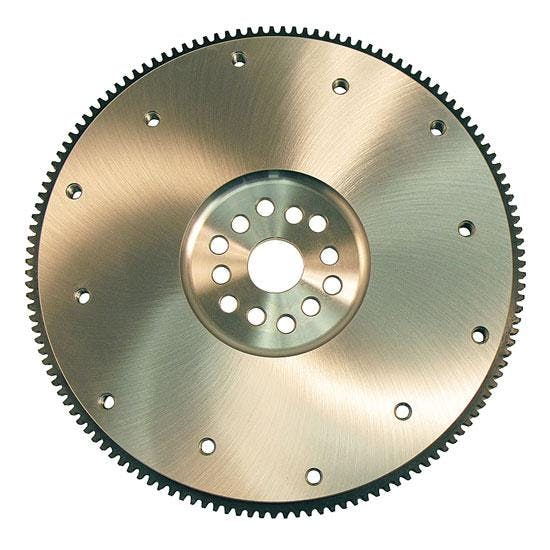

RAM Clutches 1535 Ford Circle Track 2000/2300 Steel Flywheel
RAM Clutches 1535 Ford Circle Track 2000/2300 Steel Flywheel
Ram Clutches

|

#6051535

RAM Clutches 1535 Ford Circle Track 2000/2300 Steel Flywheel

  • Fits Ford applications
  • Center hole diameter 1.260
  • Internal balance
See More

$279.00

/each

In Stock


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

135 Tooth Count, Not SFI-approved SFI Rating, Steel

  • Fits Ford applications
  • Center hole diameter 1.260
  • Internal balance
  • 135 tooth ring gear
  • Clutch bolt patterns: Ford diaphragm 8.5" clutches with 9.70" bolt circle, 3/8-16 thread, Ford diaphragm 7 7/8" clutches with 8.75" bolt circle, 3/8-16 thread
See more details

Key Specs

MFG. Part #1535
Tooth Count135
SFI RatingNot SFI-approved
Material TypeSteel
Engine BalanceInternal
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Ram Clutches 1535 Details

RAM billet steel flywheels deliver the uncompromising performance and long term reliability required for modern street performance applications. Each flywheel is precision machined, surface ground, and dynamically balanced to exacting tolerances, ensuring a perfect fit right out of the box. The robust steel construction provides the ideal inertia for smooth launches and exceptional low speed drivability.

Designed for performance enthusiasts, engine builders, and swap specialists, RAM steel flywheels feature a serviceable ring gear and meet all SFI safety specifications. Application specific options support popular engine swap platforms—including LS, LT, Coyote, and Hemi—as well as Tremec transmission conversions. Whether upgrading for street performance, track use, or a custom build, RAM delivers the premium flywheel solution trusted by professionals. RAM billet steel flywheels are engineered and manufactured in the USA. When only the best will do- Choose RAM.

  • Fits Ford applications
  • Center hole diameter 1.260
  • Internal balance
  • 135 tooth ring gear
  • Clutch bolt patterns: Ford diaphragm 8.5" clutches with 9.70" bolt circle, 3/8-16 thread, Ford diaphragm 7 7/8" clutches with 8.75" bolt circle, 3/8-16 thread
  • 0.625" thickness crank flange to friction surface
  • 11.5 pounds
  • Meets SFI 1.1 specifications
  • Made in the USA

Charts

Specs

  • Has 6 (ea) 9-5/8" pressure plate mounting holes that are 3/8"-16
  • For 8-1/2" diameter clutch disc
  • Weight:  11.3 lbs.
  • Contains 135 teeth

Warranty Information

Click for details

STREET DUAL DISC, HYDRAULICS, FLYWHEELS, MULTI-DISC CIRCLE TRACK

The above referenced units are strictly factory warranty only.

Units are not to be returned for warranty consideration to Speedway Motors.

EACH OF THESE UNITS ARE TAGGED WITH A FACTORY WARRANTY TAG/LABEL TO CONTACT RAM DIRECTLY FOR WARRANTY REPLACEMENT CONSIDERATION.

Warranty return must be processed with Ram directly and not Speedway Motors.

Speedway Motors cannot facilitate the return of defective Ram Automotive Co. products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Ram Automotive Co. at +1 (714)-630-2764.

Ram Clutches 1535 Specifications

KEY SPECS
MFG. Part #1535
BrandRam Clutches
Tooth Count135
SFI RatingNot SFI-approved
Material TypeSteel
Engine BalanceInternal
GENERAL
Weight11.5 lbs.
Sold in QuantityEach
GTIN Code809009110907
Rear Main Seal Style1-piece
Flywheel MaterialBillet steel
Replaceable Friction SurfaceNo

Ratings & Reviews

4.3

3 Reviews

Overall Assessment

The product's quality is confirmed by customers planning to use it in professional contexts, like at Evergreen Speedway. Customers appreciate its suitability for specific, practical uses, suggesting that this product outperforms alternatives, particularly when properly enhanced with complementary parts, such as the ram throw out bearing. The product is deemed "the right thing to do", indicating high satisfaction even before usage. Despite the lack of direct usage feedback, customers anticipate better results than with competitors.

Write A Review

4.3

3 reviews

5

1

4

2

3

0

2

0

1

0

Filter by Ratings

Incomplete description

4.0

10 months ago

Bill W

Gloucester, VA

Verified

Bought this flywheel to use on my 2300cc mini stock. Identical to one I'm replacing except for one thing. The flywheel is drilled for the three dowel pins that help locate the pressure plate like my old flywheel, but there were no pins with the kit. Speedway tech said to call Ram, so I did. They told me that this flywheel is drilled for their pressure plate, which takes 3/8 x 16 bolts and dowels are not needed. Luckily, I'm running their pressure plate so no issues. However, if you're running a different pressure plate, verify your bolt spacing and thread size before ordering. Speedway should list this in their description.

Would Recommend

As of now yes

4.0

5 years ago

Brando

Michigan

Verified

Haven't used the product yet so to early to tell if you use make sure you get the ram throw out bearing with it.

Would Recommend

Yep it was the right thing to do!

5.0

6 years ago

Olddad

Tacoma

Verified

We will use it in our Mini stock racer at Evergreen Speedway.

Would Recommend

Showing 3 of 3 reviews

Questions & Answers

12 Questions • 11 Answers

Can this flywheel work on my ford 2.3 turbo pinto application with 450 bhp +, and could it be heavier than 11 lbs, let's say 19 lbs.?

by Gamba

• 7 years ago

1 answer

View Answer

Will a stock pressure plate and clutch work with this flywheel

by John

• 7 years ago

1 answer

View Answer

Will a stock clutch work on this?

by Jc36

• 8 years ago

1 answer

View Answer

Where can you get the teeth ring for this fly wheel?

by Booner

• 8 years ago

2 answers

View Answers

what size bolts hold flywheel to crank thread size&lenght

by ken

• 9 years ago

1 answer

View Answer

What other clutch & plate will work besides the reccomended? Our rules state we cant use a racing clutch or disk, so I need one that atleast looks stock.......We can use Racing flywheel, steel or aluminum. Also need to know what Release bearing to use with this. Im using a Pinto Bell housing.

by NorthwestRacer

• 11 years ago

1 answer

View Answer

What starter to use with this? This flywheel has a different amount of teeth on the ring gear than the flywheel it replaces on most 2.3L fords(132 original-135 Ram flywheel). What starter works with the 135 tooth pattern flywheel from Ram??

by sponge003

• 11 years ago

1 answer

View Answer

Is the ring gear close to the clutch face or at the edge closest to the block? Please show a side view of the flywheel.

by RCBooth

• 11 years ago

1 answer

View Answer

How thick is the flywheel.

by hobbystock14

• 11 years ago

1 answer

View Answer

Which starter works with this? I have this flywheel an my old starter won't hear does not touch the teeth. If is like my old flywheel was larger. I should have measured to be sure

by Mikescott

• 12 years ago

1 answer

View Answer

Load More Questions

10 of 12 questions shown

Fitment

  • Ford Lima 2.3

  • 2.3 Ford Inline Four

  • Ford Lima 2.3

  • Ford Lima 2.3

  • Ford Lima 2.3
