Product Summary

255, 260, 289, 302, 351W, 14.24" Outside Diameter

    Key Specs

    MFG. Part #1506
    BrandRam Clutches
    Tooth Count164
    SFI Rating1.1
    Material TypeSteel

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

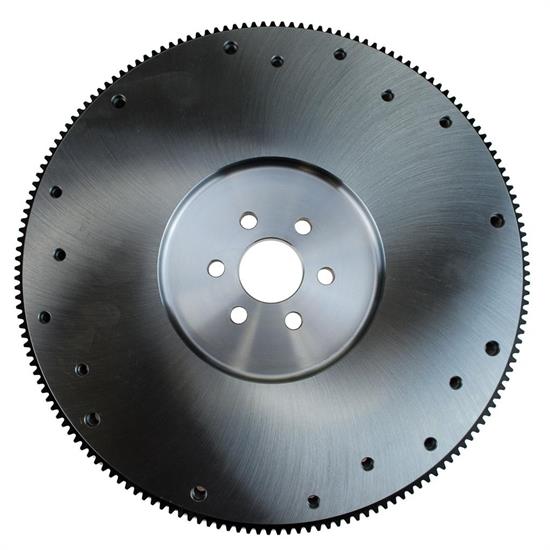

    Ram Clutches 1506 Details

    The flywheel is the foundation of the clutch system, and because it is an energy storage device, also determines the amount of power available to launch the car. A heavy flywheel stores more energy as it spins than a light flywheel. If your engine and gearing combination requires more power or inertia to make the car launch without bogging the motor, you will want a heavier flywheel. Keep in mind, though, that a heavier flywheel will be slower to accelerate through the gears. A lighter flywheel creates less inertia at launch, but will accelerate quicker through the gears. In order to effectively use a lighter flywheel, you must consider the car weight, operating RPM of the engine, and most importantly, the gearing. Too little gear will cause the engine to nose over or ‘bog’ on launch.

    RAM billet steel flywheels are recommended as a replacement for factory cast flywheels in high performance and racing vehicles. Cast flywheels are not explosion proof and can be dangerous when used in high performance applications at higher RPMs. RAM billet steel flywheels are CNC machined from certified materials and exceed SFI specifications. After machining, the flywheels are blanchard ground parallel to the crankshaft mounting surface ensuring minimum runout and the optimum mating surface for the clutch disc. Use steel flywheels in heavier drag race cars or for the best driveability in street driven vehicles.

    • Fits Ford 10.5, 11" patterns
    • 34 pounds
    • 50 oz/in imbalance
    • 164 tooth ring gear
    • Meets SFI 1.1 specifications
    • Made in the USA


    Ford SB 50 Oz/In Balance 164 Tooth

    Ram Clutches 1506 Specifications

    MFG. Part #1506
    BrandRam Clutches
    Tooth Count164
    SFI Rating1.1
    Material TypeSteel
    Outside Diameter14.24"
    Weight34 lbs.
    Sold in QuantityEach
    GTIN Code809009110204
    Engine BalanceExternal
    Flywheel MaterialBillet steel
    Replaceable Friction SurfaceNo
    Pressure Plate StyleLong
