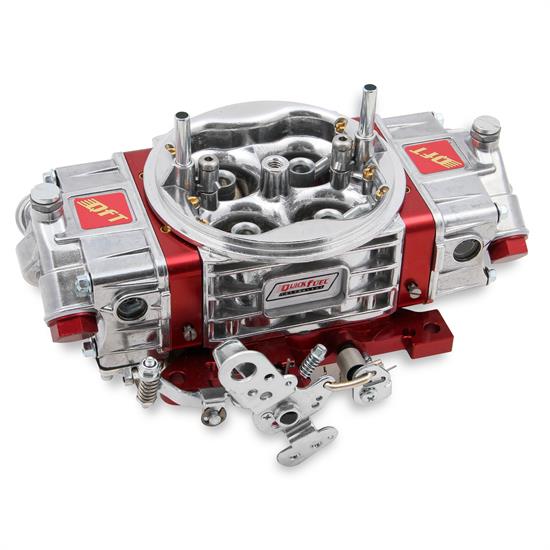

Quick Fuel Q-650-B2 Q-Series Carburetor, 650 CFM, 2X4 Supercharger

$141 Off

#424Q650B2

Quick Fuel Q-650-B2 Q-Series Carburetor, 650 CFM, 2X4 Supercharger

Name: Quick Fuel Q-650-B2 Q-Series Carburetor, 650 CFM, 2X4 Supercharger
Brand: Quick Fuel Technology
SKU: 424Q650B2
Price: 1126.95 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

Ask a Question

$1,126.95

/each

Factory Shipped

$1,267.95

Save $141.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 4-Barrel Carburetor Barrels, 650 CFM CFM

See more details

Key Specs

Carburetor Barrels	4-Barrel
Fuel Type	Gasoline
Choke Type	No Choke
CFM Range	600-699 CFM
CFM	650 CFM

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Quick Fuel Technology Q-650-B2 Details

Ideally suited for bracket racers and weekend warriors alike, Q-Series carburetors are purpose-built for the dragstrip. To combat the g's experienced during hard launches, Q-Series carbs are equipped with notched floats and secondary jet extensions. The high-flow aluminum main body isn't just lightweight, but it also features recessed air bleed cavities for improved air flow. Die-cast venturi are machined to exacting tolerances for outstanding throttle response. Billet metering blocks ensure a uniform fuel curve, while throttle-bodies enhance durability. For those days when track conditions vary from one pass to the next, QFT's QuickLink system makes adjusting the secondaries easy on models equipped with mechanical secondaries. The Q-Series is our most comprehensive line of carburetors, with applications available for use with gasoline, methanol, and E85 fuels, forced induction, drag race, circle track, and comes in both vacuum and mechanical secondary models.

Charts

Installation Instructions (PDF)

Guides & Documents

Carburetors Installation Instructions (424Q650B2)

Warranty (Quick Fuel Technology)

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CARB warning

Quick Fuel Technology Q-650-B2 Specifications

KEY SPECS
MFG. Part #	Q-650-B2
Brand	Quick Fuel Technology
Carburetor Barrels	4-Barrel
Fuel Type	Gasoline
Choke Type	No Choke
CFM Range	600-699 CFM
CFM	650 CFM
Carburetor Flange Type	4-Barrel Square Bore
Finish	Shiny
Material Type	Aluminum
Color	Silver/Red
Secondary Type	Mechanical
Fuel Inlet Type	Dual
Gasket(s) Included	Yes
New or Remanufactured	New
Throttle Linkage Type	Universal
Supercharged Application	Yes

GENERAL
Booster	Down-leg
Bolt Hole Pattern	5.160" x 5.625"
Carburetor Height	3.25
Primary Power Valve	4.5 Hg
Primary Jet Size	72
Secondary Jet Size	80
Primary Outer Air Bleed Sizes Included	70
Primary Inner Air Bleed Sizes Included	28
Secondary Outer Air Bleed Sizes Included	70
Secondary Inner Air Bleed Sizes Included	28
Primary Discharge Nozzle Size	0.035
Secondary Discharge Nozzle Size	0.035
GTIN Code	849804000799
Sold in Quantity	Each

Ratings & Reviews

1 Review

Write A Review

1 reviews

Filter by Ratings

Sort Reviews

yes I would buy this item again

5.0

8 months ago

mr t

flemington nj

Verified

nice carbs sitting on top of my 671

Would Recommend

Showing 1 of 1 reviews
