#424Q1050

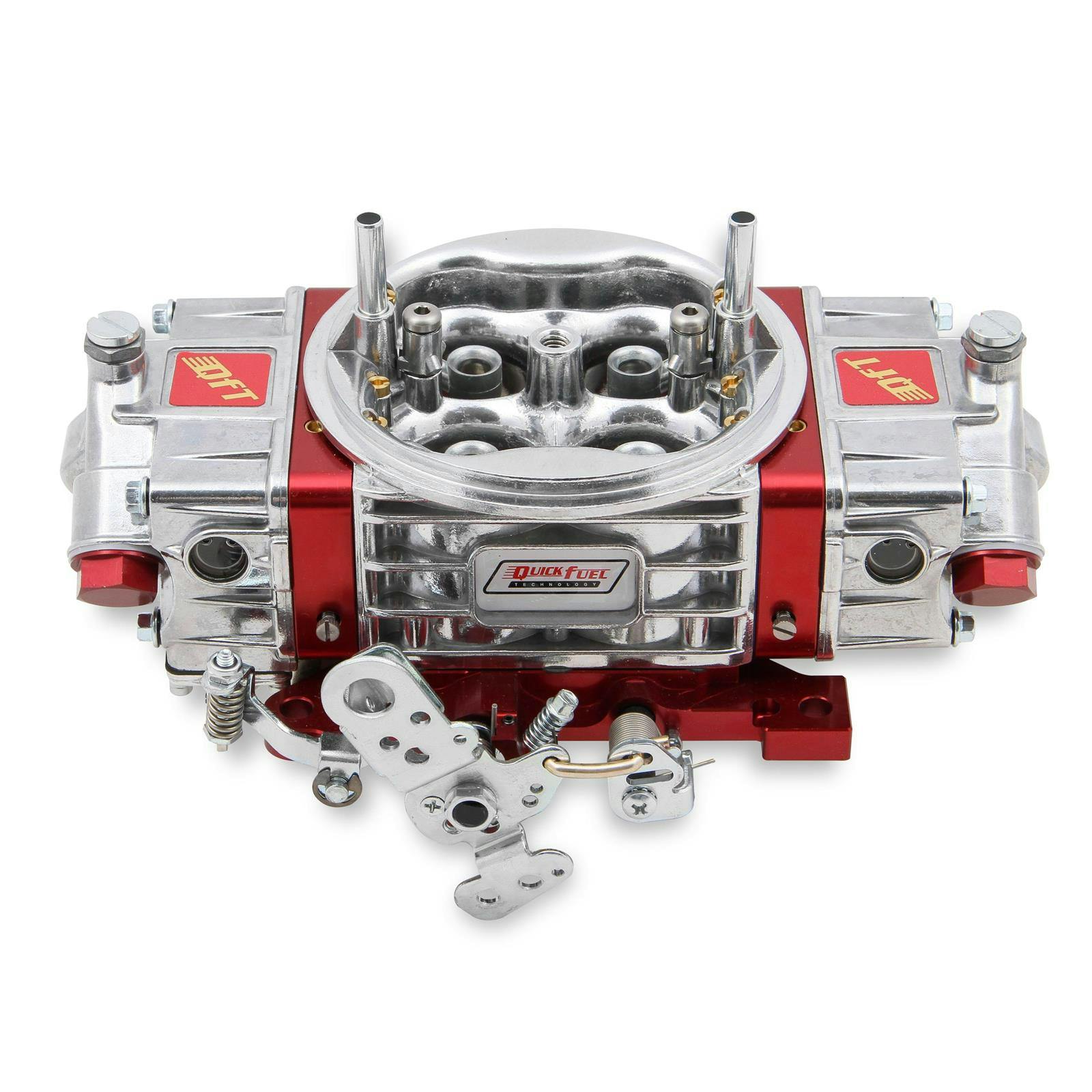

Quick Fuel Q-1050 Q-Series Carburetor 1050CFM
$1,499.95
/each
Factory Shipped
$1,687.95
Save $188.00
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Carburetor Barrels | 4-Barrel |
| Fuel Type | Gasoline |
| Choke Type | No Choke |
| CFM Range | 1,000-1,099 CFM |
| CFM | 1050 CFM |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQuick Fuel Technology Q-1050 Details
Quick Fuel Technology Q-1050 Details
Ideally suited for bracket racers and weekend warriors alike, Q-Series carburetors are purpose-built for the dragstrip. To combat the g's experienced during hard launches, Q-Series carbs are equipped with notched floats and secondary jet extensions. The high-flow aluminum main body isn't just lightweight, but it also features recessed air bleed cavities for improved air flow. Die-cast venturi are machined to exacting tolerances for outstanding throttle response. Billet metering blocks ensure a uniform fuel curve, while throttle-bodies enhance durability. For those days when track conditions vary from one pass to the next, QFT's QuickLink system makes adjusting the secondaries easy on models equipped with mechanical secondaries. The Q-Series is our most comprehensive line of carburetors, with applications available for use with gasoline, methanol, and E85 fuels, forced induction, drag race, circle track, and comes in both vacuum and mechanical secondary models.
Guides & Documents
CARB Warning
For use on pre-1966 vehicles only
CARB Warning
For use on pre-1966 vehicles only
Quick Fuel Technology Q-1050 Specifications
Quick Fuel Technology Q-1050 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | Q-1050 |
| Brand | Quick Fuel Technology |
| Carburetor Barrels | 4-Barrel |
| Fuel Type | Gasoline |
| Choke Type | No Choke |
| CFM Range | 1,000-1,099 CFM |
| CFM | 1050 CFM |
| Carburetor Flange Type | 4-Barrel Square Bore |
| Finish | Polished |
| Material Type | Aluminum |
| Color | Silver/Red |
| Secondary Type | Mechanical |
| Fuel Inlet Type | Dual |
| Gasket(s) Included | Yes |
| New or Remanufactured | New |
| Throttle Linkage Type | Universal |
| Supercharged Application | No |
| GENERAL | |
| Booster | Down-leg |
| Bolt Hole Pattern | 5.160" x 5.625" |
| Carburetor Height | 3.25 |
| Primary Power Valve | 4.5 Hg |
| Primary Jet Size | 86 |
| Secondary Jet Size | 93 |
| Primary Outer Air Bleed Sizes Included | 70 |
| Primary Inner Air Bleed Sizes Included | 28 |
| Secondary Outer Air Bleed Sizes Included | 70 |
| Secondary Inner Air Bleed Sizes Included | 28 |
| GTIN Code | 849804000614 |
| Sold in Quantity | Each |
