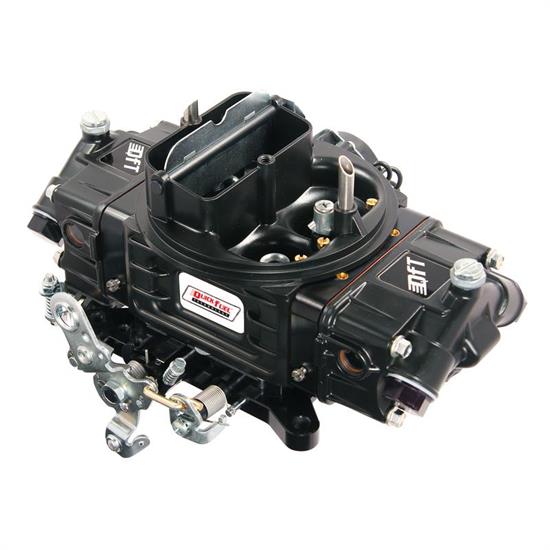

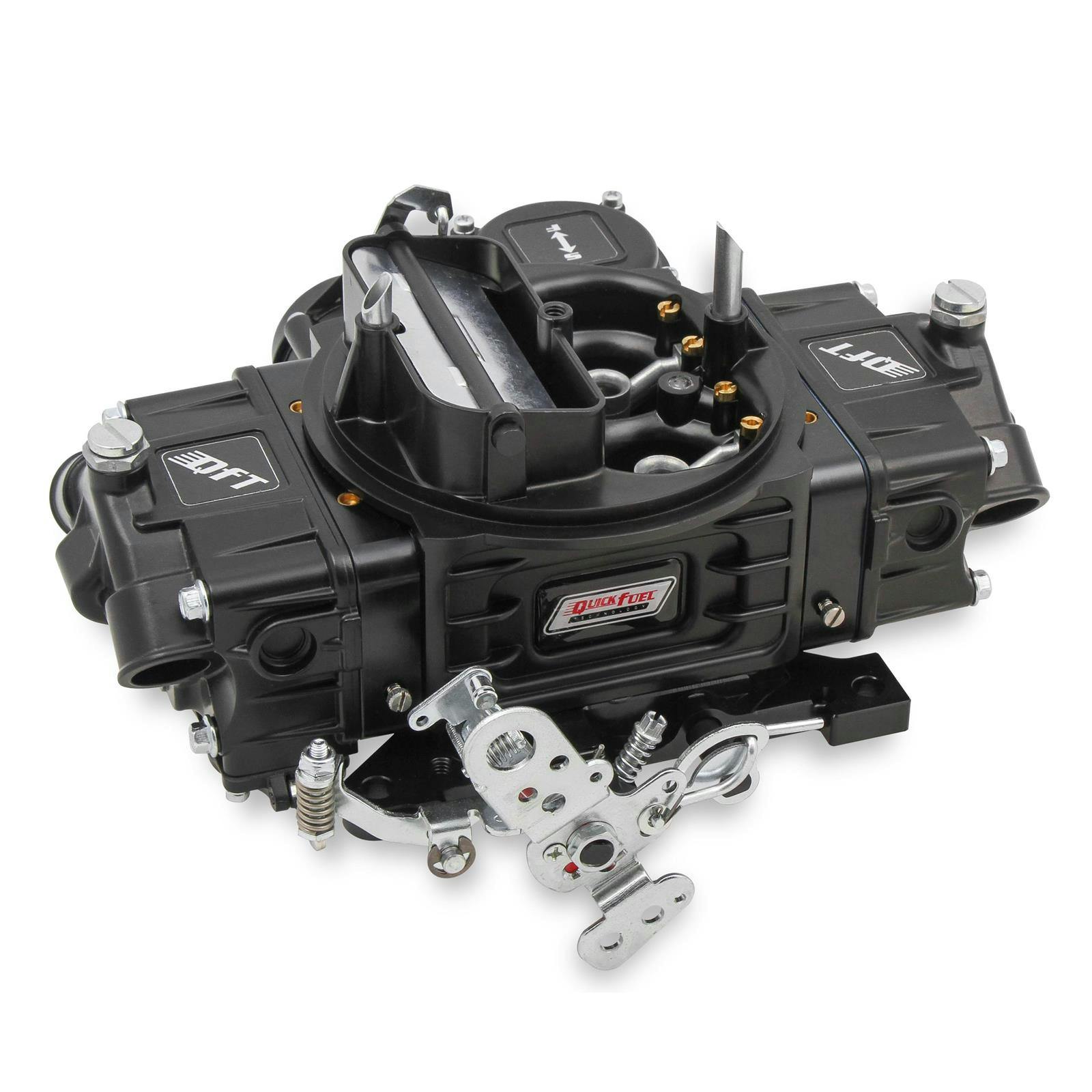

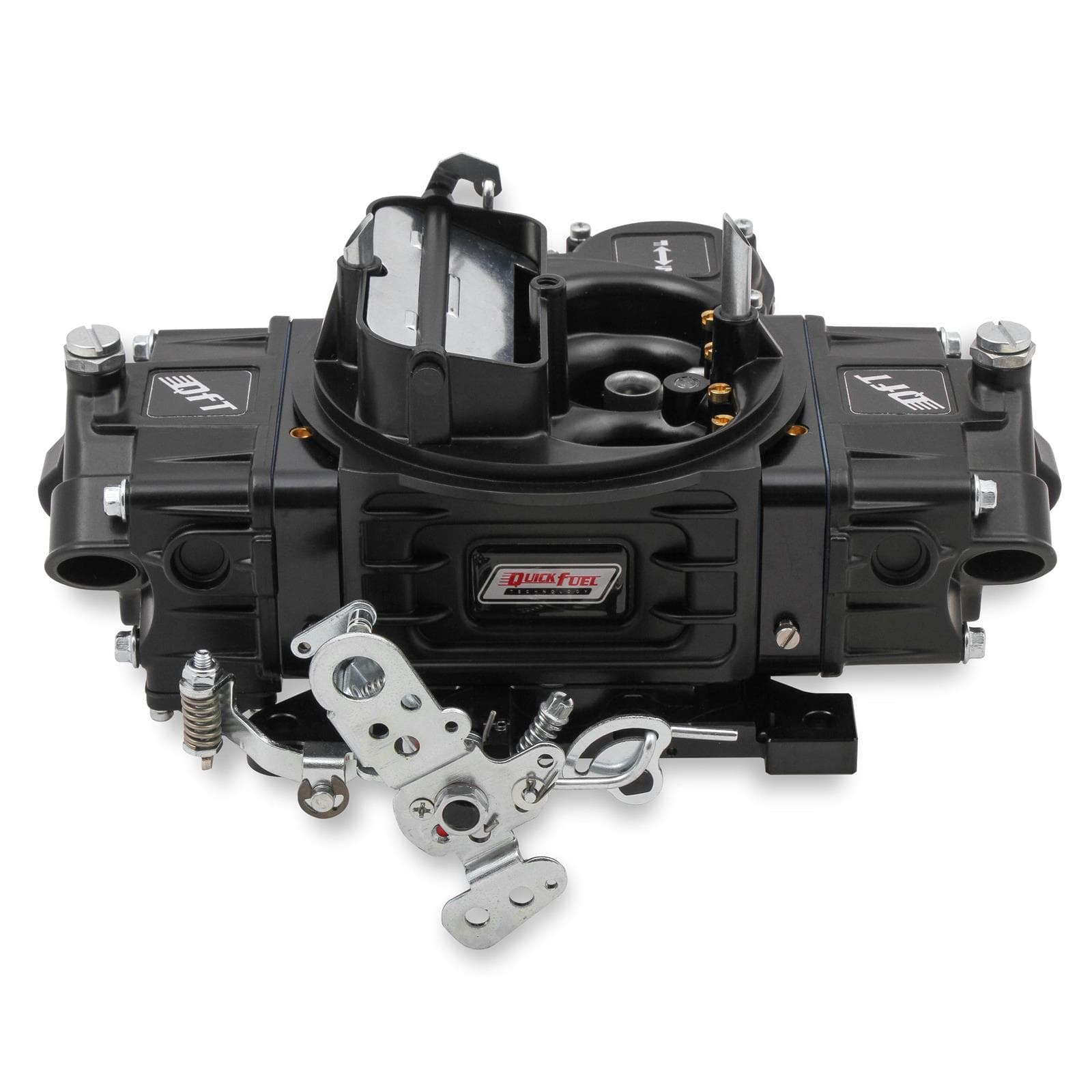

Quick Fuel BD-780-VS SS-Series Carburetor, 780CFM, Black Diamond VS
Discontinued
This item is currently not available
Shop all Quick Fuel Black Diamond SS-Series Carburetors
Key Specs
| Carburetor Barrels | 4-Barrel |
| Fuel Type | Gasoline |
| Choke Type | Electric |
| CFM Range | 700-799 CFM |
| CFM | 780 CFM |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQuick Fuel Technology BD-780-VS Details
Quick Fuel Technology BD-780-VS Details
Super Street Series carburetors combine street-friendly drivability and track-capable performance in a single value-oriented package. Setting them apart from ordinary street carbs, they feature billet dual metering blocks and throttle-bodies that offer tighter tolerances and eliminate porosity. Not only are Super Street Series carbs available with both vacuum or mechanical secondaries, QFT also offers models designed and calibrated specifically for E85 fuel and blow-through forced induction applications. Running alternative fuel or boost no longer requires an expensive custom carburetor. All SS-Series carburetors are equipped with universal throttle levers to accommodate Ford A/T kickdown, GM 700 R4 mounting holes, and ability to mount brackets for Chrysler vehicles. Available in 8 different sizes, bolting on the ultimate street/strip carburetor has never been easier.
Even a carburetor that performs great can still be an eyesore, but it doesn't have to be that way. Quick Fuel Technology's proprietary Black Diamond coating offers excellent corrosion resistance as well as a durable finish that easily stands up to dirt and oil. In addition to great looks, the PTFE coating reduces fuel temperature by six percent for improved performance.
Charts
Guides & Documents
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
Quick Fuel Technology BD-780-VS Specifications
Quick Fuel Technology BD-780-VS Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | BD-780-VS |
| Brand | Quick Fuel Technology |
| Carburetor Barrels | 4-Barrel |
| Fuel Type | Gasoline |
| Choke Type | Electric |
| CFM Range | 700-799 CFM |
| CFM | 780 CFM |
| Carburetor Flange Type | 4-Barrel Square Bore |
| Finish | Black |
| Material Type | Aluminum |
| Color | Black |
| Secondary Type | Vacuum |
| Fuel Inlet Type | Dual |
| New or Remanufactured | New |
| Throttle Linkage Type | Universal |
| Supercharged Application | No |
| GENERAL | |
| Booster | Down-leg |
| Bolt Hole Pattern | 5.160" x 5.625" |
| Carburetor Height | 3.25 |
| GTIN Code | 849804000041 |
| Sold in Quantity | Each |
