#7211844105

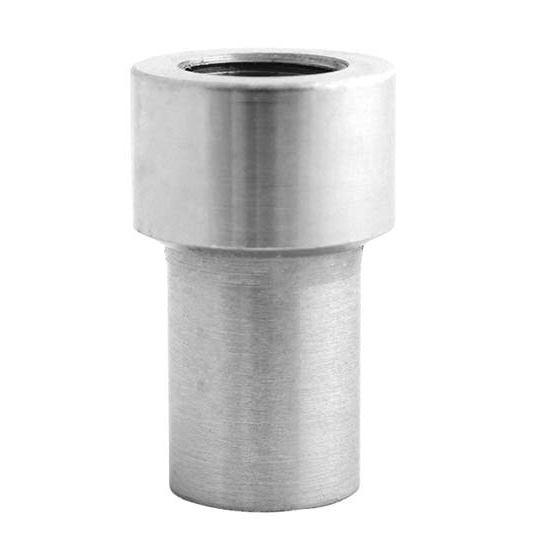

QA11844-105 Chassis Tube Ends Adapter, Steel, 1/2 in., 5/16-24 LH
$5.99
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 0.625" Diameter Big End, Steel, Natural
See more details
Key Specs
| MFG. Part # | 1844105 |
| Brand | QA1 |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 1844105 Details
QA1 1844105 Details
QA1's weld-in tube adapters are CNC machined to precise tolerances from special easily weldable chromoly steel. Available in a large assortment of sizes to fit most popular tubing, they are an effective way to adapt rod ends or QA1's Rebuildable Bearings to a variety of applications. Available in both right and left hand thread styles, with the left hand units marked with a machined groove for easy identification. Also available in select sizes with integrated hex; weld-on hexes sold separately.
QA1 1844105 Specifications
QA1 1844105 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1844105 |
| Brand | QA1 |
| GENERAL | |
| Overall Length | 1.25" |
| Diameter Big End | 0.625" |
| Diameter Small End | 0.484" |
| Tube O.D. | 0.625" |
| Under Head Length | .75" |
| Thread Pitch | 5/16"-24 |
| Thread Type | LH Female |
| Thread Length | 1.25" |
| Material Type | Steel |
| Finish | Natural |
| Sold in Quantity | Each |
| Notes | HEAD THICKNESS .50 INCH |
| GTIN Code | 806990053299 |
| Style | Smooth |
| Overall Thickness | 0.058" |
