Product Summary

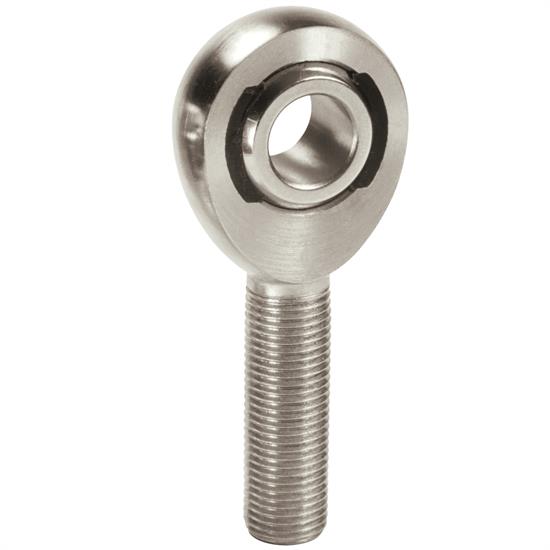

Universal Fit, RH Male Thread Type, Chromoly, Natural

  • Commonly used on 4-link and ladder bars for their strength and durability
  • These rod ends are completely self-sealing and self-lubricating
  • Their Nylon/PTFE injection molded race keeps dirt and debris out
  • Has a 1/2"-20 RH male thread pitch and a .5" hole diameter
  • Made from durable steel with a zinc coating for added corrosion resistance

Key Specs

MFG. Part #XMR8
BrandQA1
Material TypeChromoly

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

For the ultimate in performance rod ends, look no further than QA1's XM Chromoly Steel Series male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out.

Ball

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

Race

  • Nylon/PTFE
  • Self-Lubricating
  • Self-Sealing

Body

  • Chromoly Steel
  • Heat Treated
  • Protective Coated for Corrosion Resistance

Exclusive Features

  • Metal to Metal Support for Heavy Shock Loads
  • Increased Cross-Sectional Thickness for Greater Tensile Strength

Specifications

KEY SPECS
MFG. Part #XMR8
BrandQA1
Material TypeChromoly
GENERAL
Thread TypeRH Male
Rod End AttachmentMale Threads/Eyelet
Thread Pitch1/2"-20
Hole Diameter0.500"
Rod End StyleNylon/PTFE Lined
Rod End Construction2-piece
Grease FittingNo
FinishZinc Plated
ColorNatural
Thread Length1.500"
Rod End Head Diameter1.312"
Rod End Head Width0.625"
Rod End Misalign Angle12 degrees
Jam Nut IncludedNo
Heat TreatedYes
Load Capacity16238 lbs.
GTIN Code806990007438
Sold in QuantityEach
