Product Summary

Universal Fit, RH Male Thread Type, Chromoly, Natural

    Key Specs

    Thread TypeRH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch5/8"-18
    Material TypeChromoly
    Hole Diameter0.500"

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

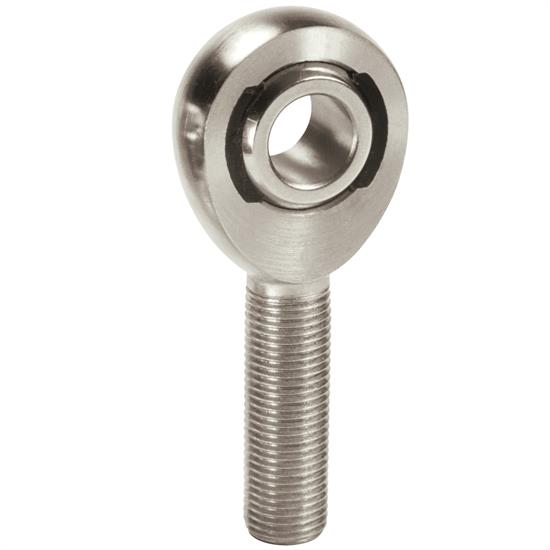

    For the ultimate in performance rod ends, look no further than QA1's XM Chromoly Steel Series male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out.

    Ball

    • 52100 Bearing Steel
    • Heat Treated
    • Hard Chrome Plated
    • Precision Ground

    Race

    • Nylon/PTFE
    • Self-Lubricating
    • Self-Sealing

    Body

    • Chromoly Steel
    • Heat Treated
    • Protective Coated for Corrosion Resistance

    Exclusive Features

    • Metal to Metal Support for Heavy Shock Loads
    • Increased Cross-Sectional Thickness for Greater Tensile Strength

    Specifications

    KEY SPECS
    MFG. Part #XMR8-10
    BrandQA1
    Thread TypeRH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch5/8"-18
    Material TypeChromoly
    Hole Diameter0.500"
    Rod End StyleNylon/PTFE Lined
    Rod End Construction3-piece
    Grease FittingNo
    FinishZinc Plated
    ColorNatural
    Rod End Misalign Angle10 degrees
    Jam Nut IncludedNo
    GENERAL
    Thread Length1.625"
    Rod End Head Diameter1.5"
    Rod End Head Width0.625"
    Heat TreatedYes
    Load Capacity23542 lbs.
    GTIN Code806990007445
    Sold in QuantityEach
