QA1 XMR7-8 X Series Rod End, Chromoly Steel, 2-Piece, Each

-12%

#91002176

QA1 XMR7-8 X Series Rod End, Chromoly Steel, 2-Piece, Each

Name: QA1 XMR7-8 X Series Rod End, Chromoly Steel, 2-Piece, Each
Brand: QA1
SKU: 91002176
Price: 20.99 USD
Availability: LimitedAvailability
Rating: 3.7 (3 reviews)

3 Reviews

Ask a Question

1/2"-20 thread pitch
Ball is made from heat treated 52100 bearing steel
Body is constructed from heat treated chromoly steel

$20.99

/each

In Stock

$24.02

Save $3.03

Order soon, only 2 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, RH Male Thread Type, Chromoly, Natural

1/2"-20 thread pitch
Ball is made from heat treated 52100 bearing steel
Body is constructed from heat treated chromoly steel
1-1/2" thread length
0.438" hole diameter

See more details

Key Specs

Thread Type	RH Male
Rod End Attachment	Male Threads/Eyelet
Thread Pitch	1/2"-20
Material Type	Chromoly
Hole Diameter	0.438"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

QA1 XMR7-8 Details

Heat treated, 4130 chromoly steel body with a hard chrome plated, heat treated ball to support heavy shock loads. Injection molded Kevlar/Teflon® liner seals out dirt and debris.

Kevlar/Teflon® race reduces slop & eliminates binding
Provides smooth & precise movement of steering & suspension
The ultimate in strength & durability

Applications: Steering & suspension for racing & high horsepower applications.

Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply anti-seize compound to prevent galling of the threads.

Ball

52100 Bearing Steel
Heat Treated
Hard Chrome Plated
Precision Ground

Race

Nylon/PTFE
Self-Lubricating
Self-Sealing

Body

Chromoly Steel
Heat Treated
Protective Coated for Corrosion Resistance

Exclusive Features

Metal to Metal Support for Heavy Shock Loads
Increased Cross-Sectional Thickness for Greater Tensile Strength

Ball

52100 Bearing Steel
Heat Treated
Hard Chrome Plated
Precision Ground

Race

Nylon/PTFE
Self-Lubricating
Self-Sealing

Body

Chromoly Steel
Heat Treated
Protective Coated for Corrosion Resistance

Exclusive Features

Metal to Metal Support for Heavy Shock Loads
Increased Cross-Sectional Thickness for Greater Tensile Strength

Charts

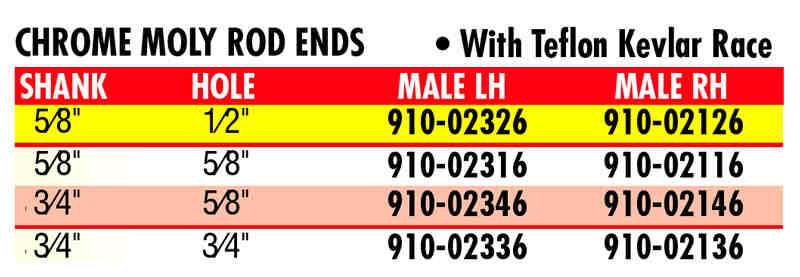

Chromoly Rod End Chart (GIF)

Guides & Documents

Heim Joints and Rod Ends Technical Information (91002176)

Warranty (QA1)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

QA1 XMR7-8 Specifications

KEY SPECS
MFG. Part #	XMR7-8
Brand	QA1
Thread Type	RH Male
Rod End Attachment	Male Threads/Eyelet
Thread Pitch	1/2"-20
Material Type	Chromoly
Hole Diameter	0.438"
Rod End Style	Nylon/PTFE Lined
Rod End Construction	3-piece
Grease Fitting	No
Finish	Zinc Plated
Color	Natural
Bushing Material	PTFE
Jam Nut Included	No

GENERAL
Thread Length	1.500"
Rod End Head Width	1.312"
Overall Thickness	0.562"
Center Hole to End of Shank	2.438"
GTIN Code	806990007421
Sold in Quantity	Each
