#721XMR6S

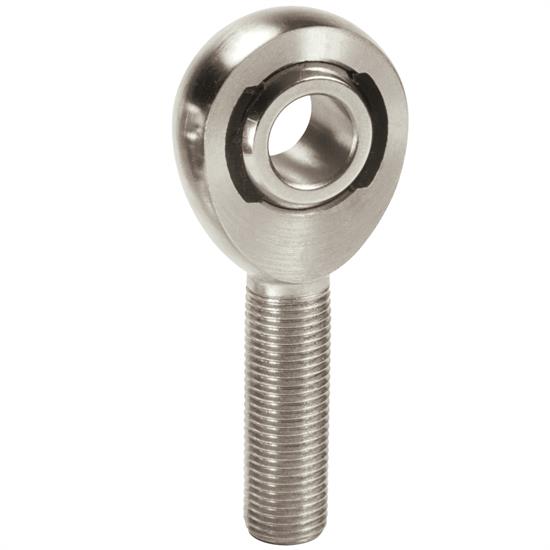

QA1 XMR6S X Series Rod End, Chromoly Steel, 2-Piece, 3/8-24 RH
$12.99
each
In Stock
Order soon, only 3 left in stock!
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Male Thread Type, Chromoly, Natural
See more details
Key Specs
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Stud |
| Thread Pitch | 3/8"-24 |
| Material Type | Chromoly |
| Hole Diameter | 0.375" |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 XMR6S Details
QA1 XMR6S Details
- QA1 XMR6S X Series Rod End
- Chromoly Steel
- 2-Piece
- 3/8-24 RH
QA1 XMR6S Specifications
QA1 XMR6S Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | XMR6S |
| Brand | QA1 |
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Stud |
| Thread Pitch | 3/8"-24 |
| Material Type | Chromoly |
| Hole Diameter | 0.375" |
| Rod End Style | Nylon/PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Rod End Misalign Angle | 12 degrees |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.250" |
| Rod End Head Diameter | 1" |
| Rod End Head Width | 0.5" |
| Heat Treated | Yes |
| Load Capacity | 9544 lbs. |
| Notes | 3/8"-24 Pivot stud thread |
| GTIN Code | 806990040848 |
| Sold in Quantity | Each |
