-6%

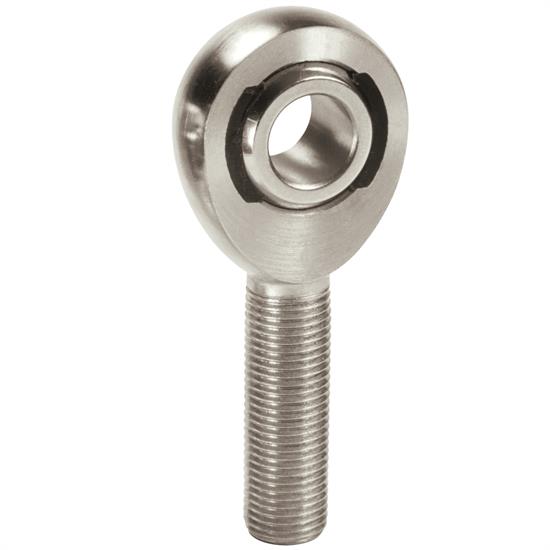

QA1 XMR6 X Series Rod End, Chromoly Steel, 2-Piece, 3/8-24 RH

-6%

QA1 XMR6 X Series Rod End, Chromoly Steel, 2-Piece, 3/8-24 RH
QA1

|

#721XMR6

QA1 XMR6 X Series Rod End, Chromoly Steel, 2-Piece, 3/8-24 RH

$14.99

/each

In Stock

$16.02

Save $1.03


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, RH Male Thread Type, Chromoly, Natural

    See more details

    Key Specs

    Thread TypeRH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch3/8"-24
    Material TypeChromoly
    Hole Diameter0.375"
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    QA1 XMR6 Details

    For the ultimate in performance rod ends, look no further than QA1's XM Chromoly Steel Series male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out.

    Ball

    • 52100 Bearing Steel
    • Heat Treated
    • Hard Chrome Plated
    • Precision Ground

    Race

    • Nylon/PTFE
    • Self-Lubricating
    • Self-Sealing

    Body

    • Chromoly Steel
    • Heat Treated
    • Protective Coated for Corrosion Resistance

    Exclusive Features

    • Metal to Metal Support for Heavy Shock Loads
    • Increased Cross-Sectional Thickness for Greater Tensile Strength

    Guides & Documents

    Warranty (QA1)

    QA1 XMR6 Specifications

    KEY SPECS
    MFG. Part #XMR6
    BrandQA1
    Thread TypeRH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch3/8"-24
    Material TypeChromoly
    Hole Diameter0.375"
    Rod End StyleNylon/PTFE Lined
    Rod End Construction3-piece
    Grease FittingNo
    FinishZinc Plated
    ColorNatural
    Bushing MaterialPTFE
    Jam Nut IncludedNo
    GENERAL
    Thread Length1.250"
    Rod End Head Diameter1"
    Rod End Head Width0.5"
    Rod End Misalign Angle12 degrees
    Heat TreatedYes
    Load Capacity9544 lbs.
    GTIN Code806990007391
    Sold in QuantityEach
