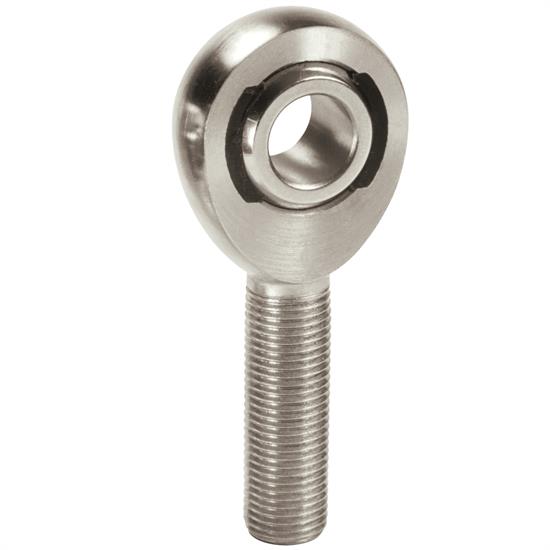

QA1 XMR5 X Series Rod End, Chromoly, 2-Piece, Male 5/16-24 RH
QA1 XMR5 X Series Rod End, Chromoly, 2-Piece, Male 5/16-24 RH

QA1 XMR5 X Series Rod End, Chromoly, 2-Piece, Male 5/16-24 RH

Universal Fit, RH Male Thread Type, Male Threads/Eyelet Rod End Attachment, Chromoly, Natural

0 Reviews | 0 Answered Questions
On Backorder
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
QA1 XMR5 X Series Rod End, Chromoly, 2-Piece, Male 5/16-24 RH
QA1 XMR5 X Series Rod End, Chromoly, 2-Piece, Male 5/16-24 RH
QA1 XMR5 X Series Rod End, Chromoly, 2-Piece, Male 5/16-24 RH
X
QA1 XMR5 X Series Rod End, Chromoly, 2-Piece, Male 5/16-24 RH
Zoomed In Image
QA1 estimates this item will ship on or before October 21st.
Part # 721XMR5
$10.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Thread Type:
RH Male
Rod End Attachment:
Male Threads/Eyelet
Thread Pitch:
5/16"-24
Material Type:
Chromoly
Hole Diameter:
0.313"
Rod End Style:
Nylon/PTFE Lined
Rod End Construction:
3-piece
Grease Fitting:
No
Finish:
Zinc Plated
Color:
Natural
Thread Length:
1.250"
Rod End Head Diameter:
0.875"
Rod End Head Width:
0.437"
Rod End Misalign Angle:
14 degrees
Jam Nut Included:
No
Heat Treated:
Yes
Load Capacity:
7639 lbs.
MFG. Part #:
XMR5
GTIN Code:
806990007377
Sold in Quantity:
Each

Info

For the ultimate in performance rod ends, look no further than QA1's XM Chromoly Steel Series male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out.

Ball

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

Race

  • Nylon/PTFE
  • Self-Lubricating
  • Self-Sealing

Body

  • Chromoly Steel
  • Heat Treated
  • Protective Coated for Corrosion Resistance

Exclusive Features

  • Metal to Metal Support for Heavy Shock Loads
  • Increased Cross-Sectional Thickness for Greater Tensile Strength
