-18%
-18%
|
#91002376
QA1 XML7-8 X Series Rod End, Chromoly Steel, 2-Piece, Each
$19.49
/each
Factory Shipped
$24.02
Save $4.53
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
-18%
-18%
|
#91002376
$19.49
/each
Factory Shipped
$24.02
Save $4.53
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 1/2"-20 |
| Material Type | Chromoly |
| Hole Diameter | 0.438" |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBall
Race
Body
Exclusive Features
Ball
Race
Body
Exclusive Features
Charts

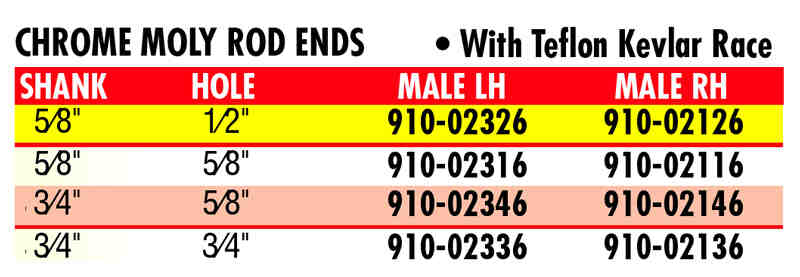

Chromoly Rod End Chart (GIF)
| KEY SPECS | |
|---|---|
| MFG. Part # | XML7-8 |
| Brand | QA1 |
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 1/2"-20 |
| Material Type | Chromoly |
| Hole Diameter | 0.438" |
| Rod End Style | Nylon/PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.500" |
| Rod End Head Diameter | 1.312" |
| Rod End Head Width | 0.562" |
| Rod End Misalign Angle | 12 degrees |
| Overall Thickness | 0.562" |
| Heat Treated | Yes |
| Load Capacity | 18761 lbs. |
| GTIN Code | 806990007575 |
| Sold in Quantity | Each |
