#721XML6

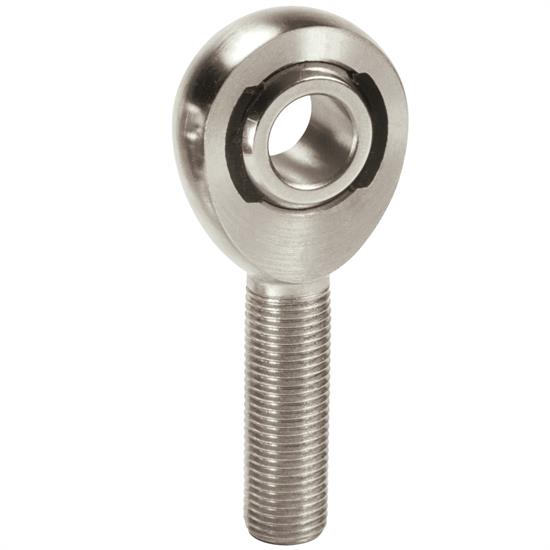

QA1 XML6 X Series Rod End, Chromoly Steel, 2-Piece, 3/8-24 LH
$15.49
/each
In Stock
$16.02
Save $0.53
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
|
#721XML6
$15.49
/each
In Stock
$16.02
Save $0.53
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/8"-24 |
| Material Type | Chromoly |
| Hole Diameter | 0.375" |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyFor the ultimate in performance rod ends, look no further than QA1's XM Chromoly Steel Series male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out.
Ball
Race
Body
Exclusive Features
Guides & Documents
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | XML6 |
| Brand | QA1 |
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/8"-24 |
| Material Type | Chromoly |
| Hole Diameter | 0.375" |
| Rod End Style | Nylon/PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.250" |
| Rod End Head Diameter | 1" |
| Rod End Head Width | 0.5" |
| Rod End Misalign Angle | 12 degrees |
| Heat Treated | Yes |
| Load Capacity | 9544 lbs. |
| GTIN Code | 806990007544 |
| Sold in Quantity | Each |
5
1 Review
5
1 reviews
5
1
4
0
3
0
2
0
1
0
Filter by Ratings
Product seems well made.
5.0
a year ago
Merc
Pgh. Pa.
Verified
I used them for wheelie bars. Might be overkill but better safe than sorry.
Would Recommend
Showing 1 of 1 reviews
Be the first to ask a question.
