#721XML5

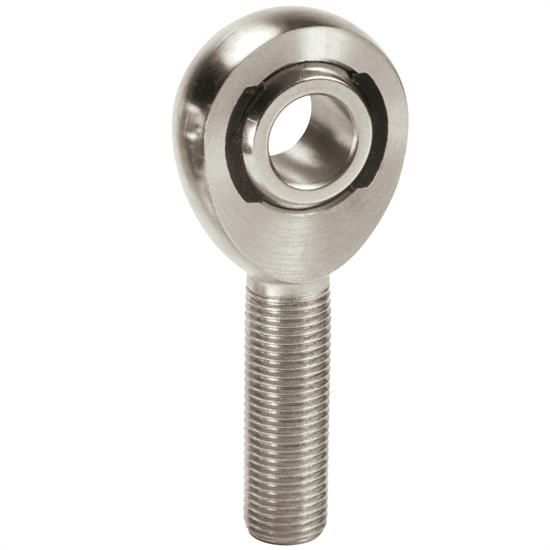

QA1 XML5 X Series Rod End, Chromoly, 2-Piece, Male 5/16-24 LH
$10.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before March 27th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, LH Male Thread Type, Chromoly, Natural
See more details
Key Specs
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/16"-24 |
| Material Type | Chromoly |
| Hole Diameter | 0.313" |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 XML5 Details
QA1 XML5 Details
For the ultimate in performance rod ends, look no further than QA1's XM Chromoly Steel Series male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out.
Ball
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Race
- Nylon/PTFE
- Self-Lubricating
- Self-Sealing
Body
- Chromoly Steel
- Heat Treated
- Protective Coated for Corrosion Resistance
Exclusive Features
- Metal to Metal Support for Heavy Shock Loads
- Increased Cross-Sectional Thickness for Greater Tensile Strength
QA1 XML5 Specifications
QA1 XML5 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | XML5 |
| Brand | QA1 |
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/16"-24 |
| Material Type | Chromoly |
| Hole Diameter | 0.313" |
| Rod End Style | Nylon/PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Rod End Misalign Angle | 14 degrees |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.250" |
| Rod End Head Diameter | 0.875" |
| Rod End Head Width | 0.437" |
| Heat Treated | Yes |
| Load Capacity | 7639 lbs. |
| GTIN Code | 806990007520 |
| Sold in Quantity | Each |
