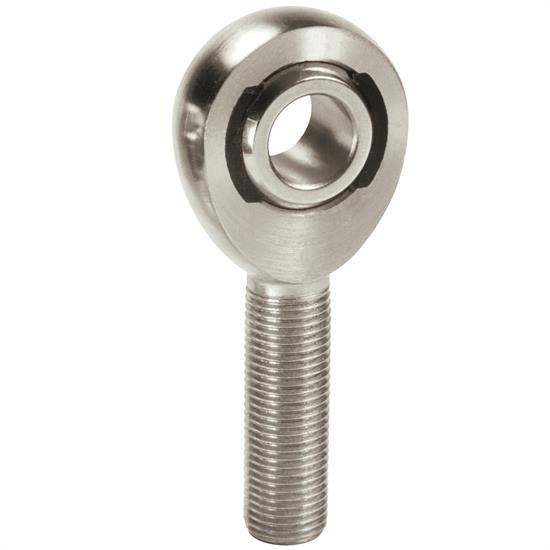

QA1 XML14 X Series Rod End, Chromoly Steel, 2-Piece, 7/8-14 LH
QA1 XML14 X Series Rod End, Chromoly Steel, 2-Piece, 7/8-14 LH

QA1 XML14 X Series Rod End, Chromoly Steel, 2-Piece, 7/8-14 LH

Universal Fit, LH Male Thread Type, Male Threads/Eyelet Rod End Attachment, Chromoly, Natural

0 Reviews | 0 Answered Questions
Factory Shipped
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
QA1 XML14 X Series Rod End, Chromoly Steel, 2-Piece, 7/8-14 LH
QA1 XML14 X Series Rod End, Chromoly Steel, 2-Piece, 7/8-14 LH
QA1 XML14 X Series Rod End, Chromoly Steel, 2-Piece, 7/8-14 LH
X
QA1 XML14 X Series Rod End, Chromoly Steel, 2-Piece, 7/8-14 LH
Zoomed In Image
We estimate this item will ship on or before September 30th.
Part # 721XML14
$37.99
$38.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Thread Type:
LH Male
Rod End Attachment:
Male Threads/Eyelet
Thread Pitch:
7/8"-14
Material Type:
Chromoly
Hole Diameter:
0.875"
Rod End Style:
Nylon/PTFE Lined
Rod End Construction:
3-piece
Grease Fitting:
No
Finish:
Zinc Plated
Color:
Natural
Thread Length:
2.000"
Rod End Head Diameter:
2"
Rod End Head Width:
0.875"
Rod End Misalign Angle:
7 degrees
Jam Nut Included:
No
Heat Treated:
Yes
Load Capacity:
45051 lbs.
MFG. Part #:
XML14
GTIN Code:
806990032430
Sold in Quantity:
Each

Info

For the ultimate in performance rod ends, look no further than QA1's XM Chromoly Steel Series male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out.

Ball

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

Race

  • Nylon/PTFE
  • Self-Lubricating
  • Self-Sealing

Body

  • Chromoly Steel
  • Heat Treated
  • Protective Coated for Corrosion Resistance

Exclusive Features

  • Metal to Metal Support for Heavy Shock Loads
  • Increased Cross-Sectional Thickness for Greater Tensile Strength

Important Messages

  • This item ships directly from the manufacturer. It may take an additional 5 business days for QA1 to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
