#721XFR7

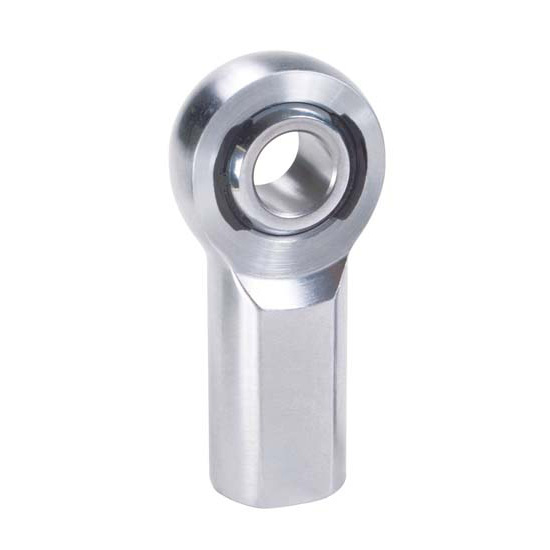

QA1 XFR7 X Series Rod End, Chromoly Steel, 2-Piece, Each
$13.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before April 4th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Female Thread Type, Chromoly, Natural
See more details
Key Specs
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Eyelet |
| Thread Pitch | 7/16"-20 |
| Material Type | Chromoly |
| Hole Diameter | 0.438" |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 XFR7 Details
QA1 XFR7 Details
For the ultimate in performance rod ends, look no further than QA1's XF Chromoly Steel Series female rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XF Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out.
Ball
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Race
- Nylon/PTFE
- Self-Lubricating
- Self-Sealing
Body
- Chromoly Steel
- Heat Treated
- Protective Coated for Corrosion Resistance
Exclusive Features
- Metal to Metal Support for Heavy Shock Loads
- Increased Cross-Sectional Thickness for Greater Tensile Strength"
QA1 XFR7 Specifications
QA1 XFR7 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | XFR7 |
| Brand | QA1 |
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Eyelet |
| Thread Pitch | 7/16"-20 |
| Material Type | Chromoly |
| Hole Diameter | 0.438" |
| Rod End Style | Nylon/PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Rod End Misalign Angle | 14 degrees |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.062" |
| Rod End Head Diameter | 1.125" |
| Rod End Head Width | 0.562" |
| Heat Treated | Yes |
| Load Capacity | 10285 lbs. |
| GTIN Code | 806990007674 |
| Sold in Quantity | Each |
