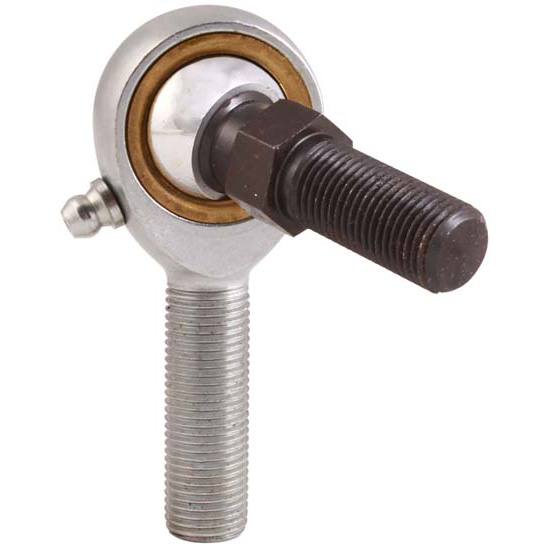

QA1 VMR5SZ V Series Rod End, Carbon Steel, 4-Piece, Each
QA1 VMR5SZ V Series Rod End, Carbon Steel, 4-Piece, Each
QA1

|

#721VMR5SZ

QA1 VMR5SZ V Series Rod End, Carbon Steel, 4-Piece, Each

$17.99

/each

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, RH Male Thread Type, Steel, Zinc Plated

    See more details

    Key Specs

    Thread TypeRH Male
    Rod End AttachmentMale Threads/Stud
    Thread Pitch5/16"-24
    Material TypeSteel
    Hole Diameter0.313"
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    QA1 VMR5SZ Details

    • QA1 VMR5SZ V Series Rod End
    • Carbon Steel
    • 4-Piece
    • 5/16-24 RH

    Guides & Documents

    Warranty (QA1)

    QA1 VMR5SZ Specifications

    KEY SPECS
    MFG. Part #VMR5SZ
    BrandQA1
    Thread TypeRH Male
    Rod End AttachmentMale Threads/Stud
    Thread Pitch5/16"-24
    Material TypeSteel
    Hole Diameter0.313"
    Rod End StyleBronze Race
    Rod End Construction3-piece
    Grease FittingYes
    FinishZinc Plated
    ColorNatural
    Bushing MaterialBronze
    Jam Nut IncludedNo
    GENERAL
    Thread Length1.250"
    Rod End Head Diameter0.875"
    Rod End Head Width0.437"
    Rod End Misalign Angle14 degrees
    Heat TreatedYes
    Load Capacity2784 lbs.
    Notes5/16"-24 Pivot stud thread
    GTIN Code806990049636
    Sold in QuantityEach
