Product Summary

Universal Fit, LH Male Thread Type, Steel, Zinc Plated

    Key Specs

    MFG. Part #VML10Z
    BrandQA1
    Material TypeSteel

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

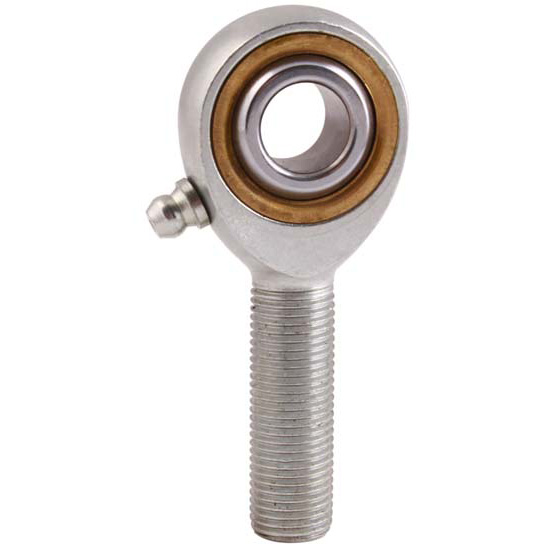

    QA1's Bronze Race Carbon Steel rod ends are generally appropriate for low load, high oscillation applications. These rod ends are protective coated for corrosion resistance and are available with left and right hand threads.

    Ball

    • 52100 Bearing Steel
    • Heat Treated
    • Hard Chrome Plated
    • Precision Ground

    Race

    • Sintered Bronze
    • Oil Impregnated

    Body

    • Carbon Steel
    • Protective Coated for Corrosion Resistance

    Specifications

    KEY SPECS
    MFG. Part #VML10Z
    BrandQA1
    Material TypeSteel
    GENERAL
    Thread TypeLH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch5/8"-18
    Hole Diameter0.625"
    Rod End StyleBronze Race
    Rod End Construction4-piece
    Grease FittingYes
    FinishZinc Plated
    ColorNatural
    Thread Length1.625"
    Rod End Head Diameter1.5"
    Rod End Head Width0.75"
    Rod End Misalign Angle16 degrees
    Jam Nut IncludedNo
    Heat TreatedYes
    Load Capacity7364 lbs.
    GTIN Code806990018908
    Sold in QuantityEach
