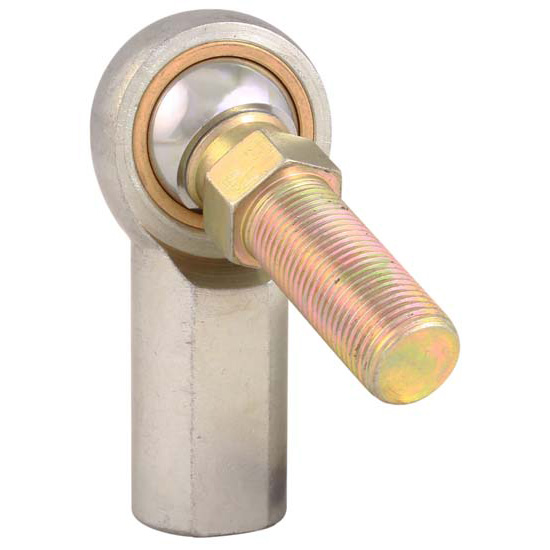

QA1 VFR8S V Series Rod End, Carbon Steel, 4-Piece, Each

-19%

QA1 VFR8S V Series Rod End, Carbon Steel, 4-Piece, Each
QA1

|

#721VFR8S

QA1 VFR8S V Series Rod End, Carbon Steel, 4-Piece, Each

$12.99

/each

Factory Shipped

$16.05

Save $3.06


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, RH Female Thread Type, Steel, Natural

    See more details

    Key Specs

    Thread TypeRH Female
    Rod End AttachmentFemale Threads/Stud
    Thread Pitch1/2"-20
    Material TypeSteel
    Hole Diameter0.5"
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    QA1 VFR8S Details

    • QA1 VFR8S V Series Rod End
    • Carbon Steel
    • 4-Piece
    • 1/2-20 RH

    Guides & Documents

    Warranty (QA1)

    QA1 VFR8S Specifications

    KEY SPECS
    MFG. Part #VFR8S
    BrandQA1
    Thread TypeRH Female
    Rod End AttachmentFemale Threads/Stud
    Thread Pitch1/2"-20
    Material TypeSteel
    Hole Diameter0.5"
    Rod End StyleBronze Race
    Rod End Construction3-piece
    Grease FittingNo
    FinishZinc Plated
    ColorNatural
    Jam Nut IncludedNo
    GENERAL
    Thread Length1.062"
    Rod End Head Diameter1.312"
    Rod End Head Width0.625"
    Rod End Misalign Angle12 degrees
    Heat TreatedYes
    Load Capacity6660 lbs.
    Notes1/2"-20 Pivot stud thread
    GTIN Code806990049933
    Sold in QuantityEach
