Add to Cart
$1,943.85
$1,567.99

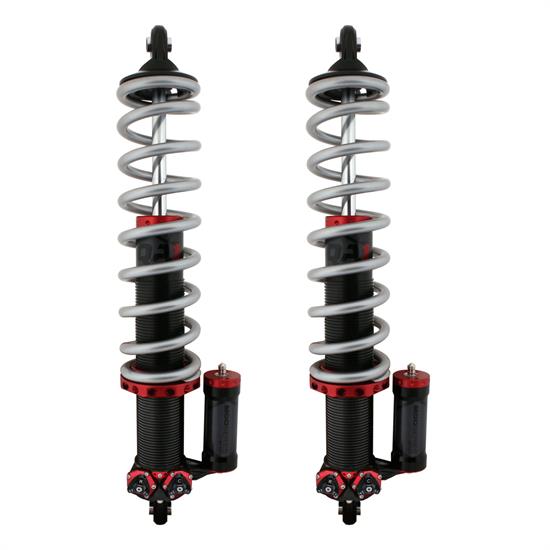

QA1 RCK52445 Mod Series GM A-Body Rear Pro Coil System, 200 lb.
QA1 RCK52445 Mod Series GM A-Body Rear Pro Coil System, 200 lb.

QA1 RCK52445 Mod Series GM A-Body Rear Pro Coil System, 200 lb.

200 lbs. Spring Rate, Double Adjustable Shock Adjustability, Aluminum Shock Body Material

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
QA1 RCK52445 Mod Series GM A-Body Rear Pro Coil System, 200 lb.
QA1 RCK52445 Mod Series GM A-Body Rear Pro Coil System, 200 lb.
QA1 RCK52445 Mod Series GM A-Body Rear Pro Coil System, 200 lb.
X
QA1 RCK52445 Mod Series GM A-Body Rear Pro Coil System, 200 lb.
Zoomed In Image
We estimate this item will ship on or before April 3rd.
Part # 721RCK52445
Save 19%
$1,567.99
$1,943.85
kit
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Spring Rate:
200 lbs.
Shock Adjustability:
Double Adjustable
Shock Body Material:
Aluminum
Shock Body Type:
Threaded
Upper Shock Mount:
Bushed Eyelet
Lower Shock Mount:
Bushed Eyelet
Height Adjustable:
Yes
Number of Valving Selections:
324
Finish:
Anodized
Coilover Kit Included:
Yes
Coilover Springs Included:
Yes
Hardware Included:
Yes
MFG. Part #:
RCK52445

Info

QA1 offers bolt-in Rear Coil-Over Conversion Kits for 1973-1977 GM A-Bodies. These kits include specially designed USA-made mounting brackets, MOD™ Series adjustable aluminum shocks, high travel springs and all necessary hardware.

Single adjustable shocks provide 18 positions of simultaneous rebound and compression adjustment while QA1’s double adjustable shocks provide 18 positions of compression adjustment and 18 positions of rebound adjustment, for a total of 324 possible valving combinations. MOD™ Series shocks also feature a double adjustable design but include adjustable low-speed bleed as well for fully independent control over compression and rebound characteristics.

These shocks also utilize a fully threaded body allowing for ride height adjustability. Multiple spring rate options are also available and have been successfully tested in various applications, from casual street driving to hard core race applications.

With our highly popular adjustable struts and the addition of the Rear Coil-Over Conversion Kit, you can now get a complete suspension makeover for both ends of the vehicle.

  • Made in the USA
  • Easy, Bolt-In Installation
  • No Cutting or Welding
  • Threaded Body
  • 100% Dyno Tested and Serialized
  • Rebuildable and Revalveable by the QA1 Factory or QA1 Authorized Service Centers

Additional MOD™ Series Features:

  • Features QuickTune™ technology - modular valve packs that allow for completely revalving the shock without having to remove it from the car!
    • Medium compression and rebound valve packs standard
    • Soft or firm compression and rebound valve packs also available
  • 24 click independent compression and rebound adjustment with low-speed bleed
  • Large solid piston (with blow-off valve) for improved driver feel and control with up to 1,600 lb. force
  • High-speed valving adjustment (coarse adjustment)—relates to shock operation during impact events, like hitting a pothole or curb
  • Low-speed valving (fine-tune adjustments)—adjusts ride quality and weight transfer on corner entry/exit; more bleed for softer feel and less bleed for stiffer feel
  • Indexable base eyelet—multiple mounting positions to optimize knob access and provide more mounting flexibility
  • Thrust bearings included

Pro Coil Systems include:

  • 2 Shocks
  • 2 Springs
  • All Mounting Brackets and Hardware

SPRING RATE CHART

The chart below is a general guideline for selecting spring rates for QA1's Rear Pro Coil Shock Systems for 73-77 GM A-bodies. Spring rates may vary depending on applications, usage, and personal preference.

1973-1977 GM A-Body
Soft Medium Firm
170 200 220

Application

Fits: 1973-1977 GM A-Body

Part Numbers
Ride Feel MOD™ Series Adjustable
Soft RCK52444
Medium RCK52445
Firm RCK52446

Notes

Installation instructions for 73-77 GM A-Body Rear Pro Coil System

MOD™ Series Shock Installation and Quick Tuning Guide

**MOD™ Series shocks include thrust bearings, spanner wrenches sold separately

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 5 business days for QA1 to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
