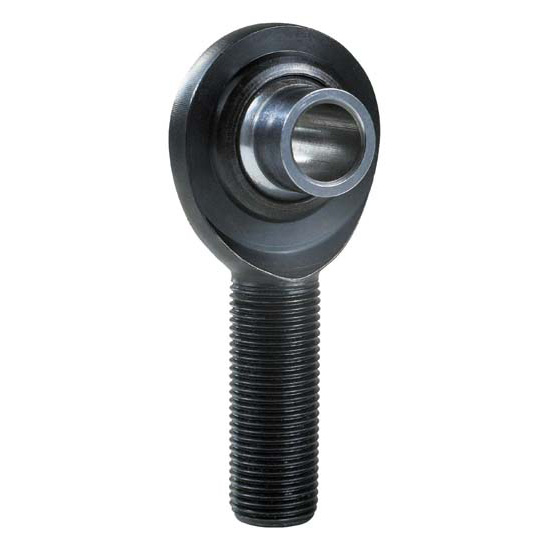

QA1 PCYMR6T PCY Series Rod End, Chromoly Steel, 2-Piece, Each
QA1 PCYMR6T PCY Series Rod End, Chromoly Steel, 2-Piece, Each

QA1 PCYMR6T PCY Series Rod End, Chromoly Steel, 2-Piece, Each

Universal Fit, RH Male Thread Type, Male Threads/Eyelet Rod End Attachment, Chromoly, Black

1 Review | 0 Answered Questions
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
QA1 PCYMR6T PCY Series Rod End, Chromoly Steel, 2-Piece, Each
QA1 PCYMR6T PCY Series Rod End, Chromoly Steel, 2-Piece, Each
QA1 PCYMR6T PCY Series Rod End, Chromoly Steel, 2-Piece, Each
X
QA1 PCYMR6T PCY Series Rod End, Chromoly Steel, 2-Piece, Each
Zoomed In Image
Part # 721PCYMR6T
$11.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Thread Type:
RH Male
Rod End Attachment:
Male Threads/Eyelet
Thread Pitch:
3/8"-24
Material Type:
Chromoly
Hole Diameter:
0.375"
Rod End Style:
PTFE Lined
Rod End Construction:
2-piece
Grease Fitting:
No
Finish:
Black Oxide
Color:
Black
Thread Length:
1.062"
Rod End Head Diameter:
1.125"
Rod End Head Width:
0.875"
Rod End Misalign Angle:
55 degrees
Jam Nut Included:
No
Heat Treated:
Yes
Load Capacity:
10171 lbs.
MFG. Part #:
PCYMR6T
GTIN Code:
806990034892
Sold in Quantity:
Each

Info

QA1 offers its 2-piece PCYM-T Chromoly Steel Series rod ends for applications requiring high misalignment. These black oxide coated rod ends offer superior load ratings over carbon steel two-piece rod ends and PTFE liner. The PCYM-T is an ideal choice for high misalignment applications with the highest misalignment available in the industry. Other sizes are available in the PCYM-T Series as special order, please call customer service for more information.

Ball

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground
  • High Misalignment

Body

  • Chromoly Steel
  • Heat Treated
  • Black Oxide Coated
  • PTFE Lined
