#1750627

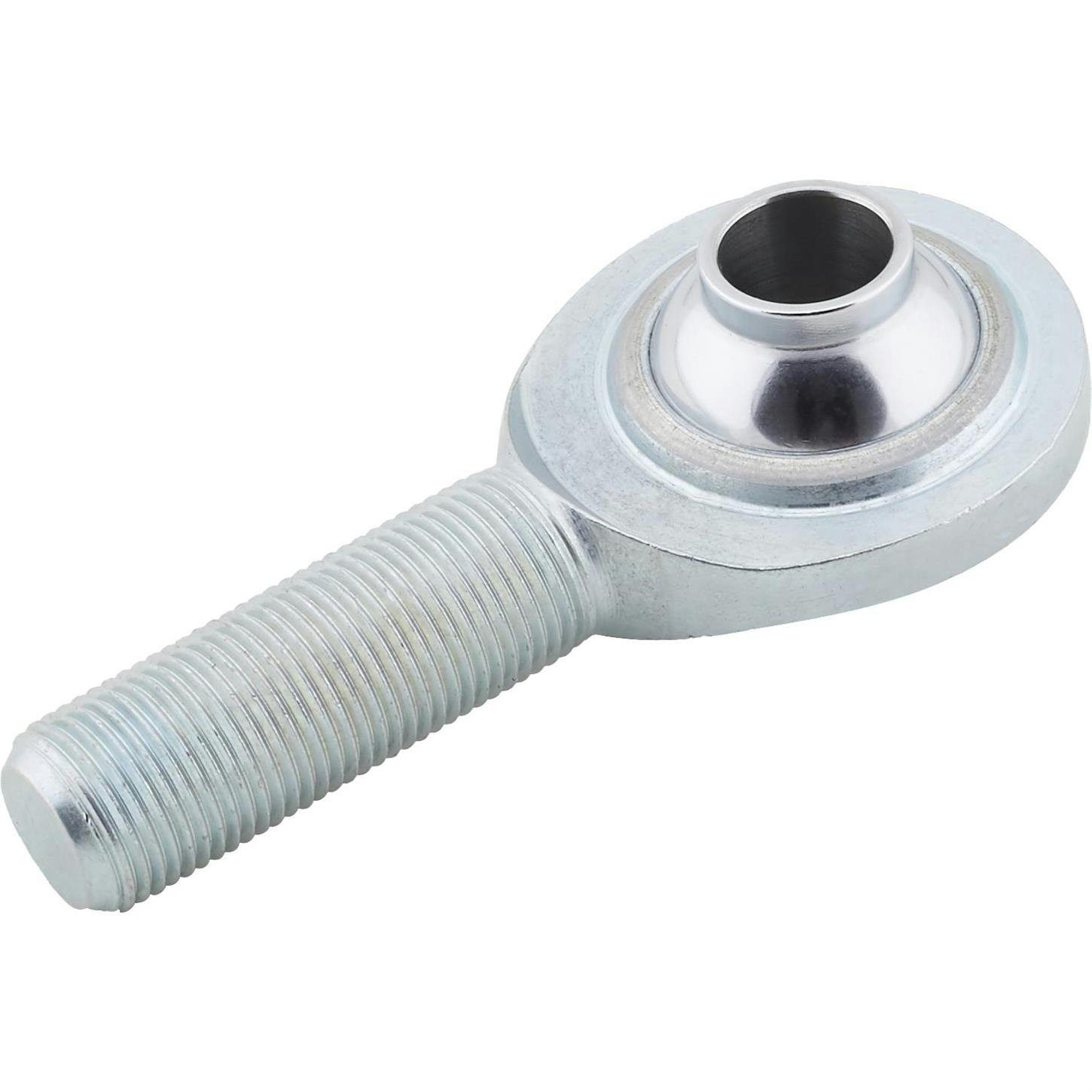

QA1 PCYMR10-12T High Misalign Heim Joint Rod Ends 3/4-16 RH M 5/8 Hole
- Manufactured from a heat treated chromoly alloy steel body
- Functions with up to 64° of misalignment
- Designed for high misalignment applications
$24.99
/each
In Stock
$31.49
Save $6.50
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Male Thread Type, Chromoly, Black
- Manufactured from a heat treated chromoly alloy steel body
- Functions with up to 64° of misalignment
- Designed for high misalignment applications
- Features a PTFE self-lubricating lining
- Black oxide coated for corrosion resistance
Key Specs
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/4"-16 |
| Material Type | Chromoly |
| Hole Diameter | 0.625" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 PCYMR10-12T Details
QA1 PCYMR10-12T Details
- Heat treated chromoly alloy steel body
- Functions with up to 64° of misalignment
- Designed for high misalignment applications
- PTFE self-lubricating lining
- Black oxide coated for corrosion resistance
- Sold individually
Item Details
T = 2", L = 3-3/8", W = 1-3/8"Guides & Documents
QA1 PCYMR10-12T Specifications
QA1 PCYMR10-12T Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | PCYMR10-12T |
| Brand | QA1 |
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/4"-16 |
| Material Type | Chromoly |
| Hole Diameter | 0.625" |
| Rod End Style | PTFE Lined |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Black Oxide |
| Color | Black |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 2.060" |
| Rod End Head Diameter | 2" |
| Rod End Head Width | 1.375" |
| Rod End Misalign Angle | 64 degrees |
| Bushing Length | 1.37" |
| Overall Length | 4.38" |
| Center Hole to End of Shank | 3.32" |
| Heat Treated | Yes |
| Load Capacity | 27862 lbs. |
| GTIN Code | 806990034991 |
| Sold in Quantity | Each |
Ratings & Reviews
5
2 Reviews
Product reviews confirm its excellent quality and functionality. Customers value the practicality offered by the item, especially in trouble-shooting binding problems in vehicle axles. The heims, used as steering joints on off-road race buggies, are highly praised - a testament to their material quality. Users signal they're likely to repurchase, indicating product reliability and higher customer satisfaction compared to competitors.
Ratings & Reviews
5
2 Reviews
Product reviews confirm its excellent quality and functionality. Customers value the practicality offered by the item, especially in trouble-shooting binding problems in vehicle axles. The heims, used as steering joints on off-road race buggies, are highly praised - a testament to their material quality. Users signal they're likely to repurchase, indicating product reliability and higher customer satisfaction compared to competitors.
5
2 reviews
5
2
4
0
3
0
2
0
1
0
Filter by Ratings
Good product
5.0
7 years ago
Sam the body man
Dearborn, Michigan
Verified
I had slight binding problem with the rear axle,problem solved.
Would Recommend
I will buy these again
5.0
7 years ago
James
Marquette, mi
Verified
I use the heims as steering joints on a off-road race buggy
Would Recommend
Showing 2 of 2 reviews
