#721PCYML810T

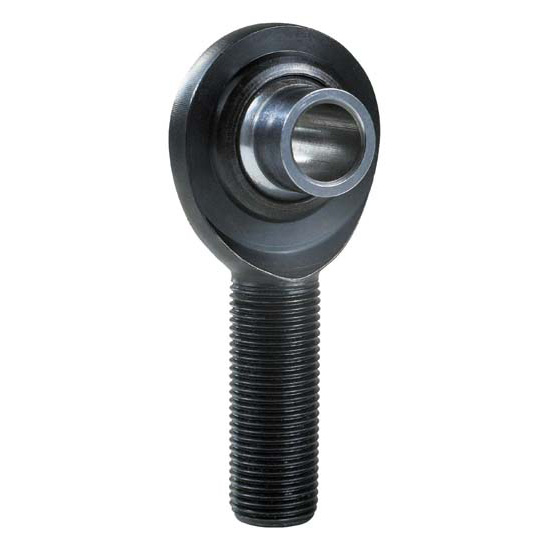

QA1 PCYML8-10T PCY Series Rod End, Chromoly Steel, 2-Piece, Each
$21.99
/each
In Stock
$24.83
Save $2.84
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
-11%
-11%
|
#721PCYML810T
$21.99
/each
In Stock
$24.83
Save $2.84
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/8"-18 |
| Material Type | Chromoly |
| Hole Diameter | 0.5" |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 offers its 2-piece PCYM-T Chromoly Steel Series rod ends for applications requiring high misalignment. These black oxide coated rod ends offer superior load ratings over carbon steel two-piece rod ends and PTFE liner. The PCYM-T is an ideal choice for high misalignment applications with the highest misalignment available in the industry. Other sizes are available in the PCYM-T Series as special order.
Ball
Body
Guides & Documents
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | PCYML8-10T |
| Brand | QA1 |
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/8"-18 |
| Material Type | Chromoly |
| Hole Diameter | 0.5" |
| Rod End Style | PTFE Lined |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Black Oxide |
| Color | Black |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.75" |
| Rod End Head Diameter | 1.75" |
| Rod End Head Width | 1.25" |
| Rod End Misalign Angle | 65 degrees |
| Heat Treated | Yes |
| Load Capacity | 24158 lbs. |
| GTIN Code | 806990034946 |
| Sold in Quantity | Each |
3
1 Review
3
1 reviews
5
0
4
0
3
1
2
0
1
0
Filter by Ratings
doesn't quite match the product picture
3.0
7 years ago
Mac
Colorado Springs Colorado
the product picture shows a somewhat larger mounting flange and a thicker heim body. (pictures of other sizes of this type of hiem are more accurate) a big downfall for the rod end is that the mounting flange is very small, so a very tight tolerance must be used on the mounting holes, which complicates the fabrication of the mounting brackets of the heim. i also have some doubts of that it will be very secure and long life due to lack of surface area to hold the hiem in place. only time will tell if they hold up to use, but i will probably chose a different setup in the future.
Would Not Recommend
Showing 1 of 1 reviews
