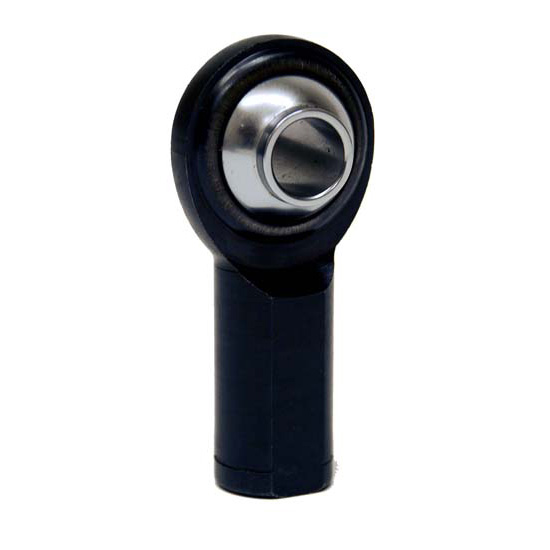

QA1 PCYFR8T PCY Series Rod End, Chromoly Steel, 2-Piece, Each
QA1 PCYFR8T PCY Series Rod End, Chromoly Steel, 2-Piece, Each

QA1 PCYFR8T PCY Series Rod End, Chromoly Steel, 2-Piece, Each

Universal Fit, RH Female Thread Type, Female Threads/Eyelet Rod End Attachment, Chromoly, Black

0 Reviews | 0 Answered Questions
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
QA1 PCYFR8T PCY Series Rod End, Chromoly Steel, 2-Piece, Each
QA1 PCYFR8T PCY Series Rod End, Chromoly Steel, 2-Piece, Each
QA1 PCYFR8T PCY Series Rod End, Chromoly Steel, 2-Piece, Each
X
QA1 PCYFR8T PCY Series Rod End, Chromoly Steel, 2-Piece, Each
Zoomed In Image
Part # 721PCYFR8T
$18.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Thread Type:
RH Female
Rod End Attachment:
Female Threads/Eyelet
Thread Pitch:
1/2"-20
Material Type:
Chromoly
Hole Diameter:
0.500"
Rod End Style:
PTFE Lined
Rod End Construction:
2-piece
Grease Fitting:
No
Finish:
Black Oxide
Color:
Black
Thread Length:
1.375"
Rod End Head Diameter:
1.5"
Rod End Head Width:
1.25"
Rod End Misalign Angle:
65 degrees
Jam Nut Included:
No
Heat Treated:
Yes
Load Capacity:
15038 lbs.
MFG. Part #:
PCYFR8T
GTIN Code:
806990075697
Sold in Quantity:
Each

Info

QA1 offers its 2-piece PCYF-T Chromoly Steel Series rod ends for applications requiring high misalignment. These black oxide coated rod ends offer superior load ratings over carbon steel two-piece rod ends and have a PTFE liner. The PCYF-T is an ideal choice for high misalignment applications with the highest misalignment available in the industry. Other sizes are available in the PCYF-T Series as special order.

Ball

  • 52100 Bearing Steel
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground
  • High Misalignment

Body

  • Chromoly Steel
  • Heat Treated
  • Black Oxide Coated
  • PTFE Lined
