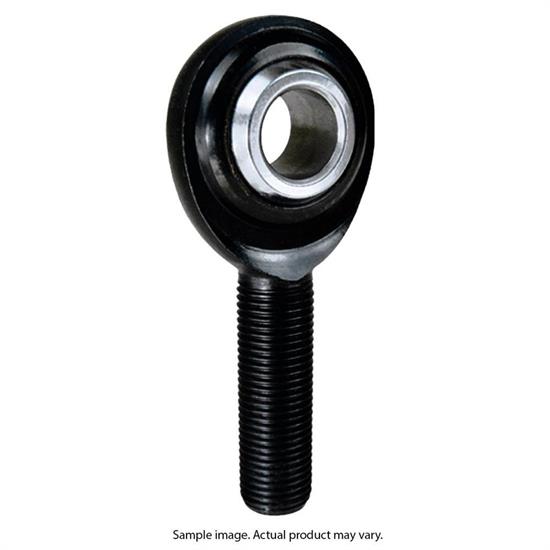

QA1 PCMR8-10 PCM Series Rod End, Chromoly, Male 5/8-18 RH, 2-Piece
$13.99
/each
On Backorder
$14.76
Save $0.77
This part is Backordered. We estimate this item will ship on or before March 29th.
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/8"-18 |
| Material Type | Chromoly |
| Hole Diameter | 0.5" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 PCMR8-10 Details
QA1 PCMR8-10 Details
QA1 offers its PCM and PCM-T Chromoly Steel Series rod ends. These black oxide coated rod ends offer superior load ratings over carbon steel two-piece rod ends and are available as metal-to-metal or PTFE lined.
Ball
- 52100 Bearing Stee
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Body
- Chromoly Steel
- Heat Treated
- Black Oxide Coated
Guides & Documents
QA1 PCMR8-10 Specifications
QA1 PCMR8-10 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | PCMR8-10 |
| Brand | QA1 |
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/8"-18 |
| Material Type | Chromoly |
| Hole Diameter | 0.5" |
| Rod End Style | Metal-to-metal |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Black Oxide |
| Color | Black |
| Bushing Material | Steel |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.625" |
| Rod End Head Diameter | 1.5" |
| Rod End Head Width | 0.625" |
| Rod End Misalign Angle | 20 degrees |
| Heat Treated | Yes |
| Load Capacity | 19300 lbs. |
| GTIN Code | 806990003003 |
| Sold in Quantity | Each |
