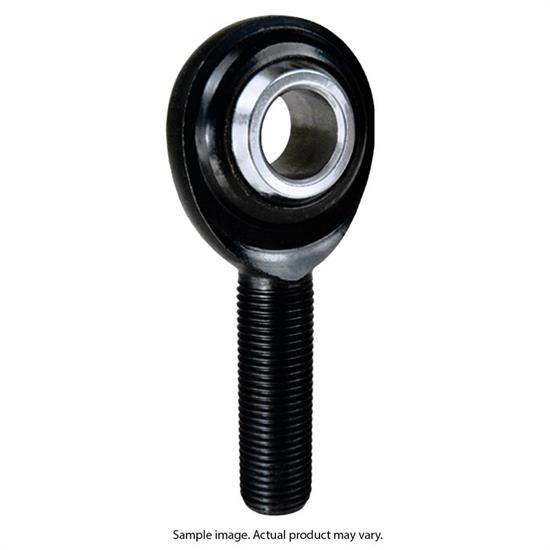

QA1 PCML8T PCM Series Rod End, Chromoly Steel, 2-Piece, Each
QA1 PCML8T PCM Series Rod End, Chromoly Steel, 2-Piece, Each
QA1

|

#721PCML8T

QA1 PCML8T PCM Series Rod End, Chromoly Steel, 2-Piece, Each

$15.49

/each

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, LH Male Thread Type, Chromoly, Black

    See more details

    Key Specs

    Thread TypeLH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch1/2"-20
    Material TypeChromoly
    Hole Diameter0.5"
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    QA1 PCML8T Details

    QA1 offers its PCM and PCM-T Chromoly Steel Series rod ends. These black oxide coated rod ends offer superior load ratings over carbon steel two-piece rod ends and are available as metal-to-metal or PTFE lined.

    Ball

    • 52100 Bearing Stee
    • Heat Treated
    • Hard Chrome Plated
    • Precision Ground

    Body

    • Chromoly Steel
    • Heat Treated
    • Black Oxide Coated
    • PTFE Lined

    Guides & Documents

    Warranty (QA1)

    QA1 PCML8T Specifications

    KEY SPECS
    MFG. Part #PCML8T
    BrandQA1
    Thread TypeLH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch1/2"-20
    Material TypeChromoly
    Hole Diameter0.5"
    Rod End StylePTFE Lined
    Rod End Construction2-piece
    Grease FittingNo
    FinishBlack Oxide
    ColorBlack
    Bushing MaterialPTFE
    Jam Nut IncludedNo
    GENERAL
    Thread Length1.500"
    Rod End Head Diameter1.312"
    Rod End Head Width0.625"
    Rod End Misalign Angle20 degrees
    Heat TreatedYes
    Load Capacity14500 lbs.
    GTIN Code806990003140
    Sold in QuantityEach
