Part # 721PCML12Z

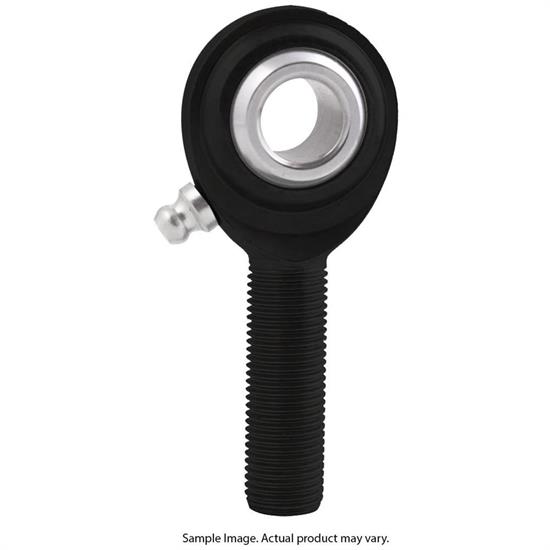

QA1 PCML12Z PCM Series Rod End, Chromoly Steel, 2-Piece, Each
by
QA1
$16.99
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, LH Male Thread Type, Chromoly, Black
See more details
Key Specs
| MFG. Part # | PCML12Z |
| Brand | QA1 |
| Material Type | Chromoly |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
- QA1 PCML12Z PCM Series Rod End
- Chromoly Steel
- 2-Piece
- 3/4-16 LH
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | PCML12Z |
| Brand | QA1 |
| Material Type | Chromoly |
| GENERAL | |
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/4"-16 |
| Hole Diameter | 0.750" |
| Rod End Style | Metal-to-metal |
| Rod End Construction | 2-piece |
| Grease Fitting | Yes |
| Finish | Black Oxide |
| Color | Black |
| Thread Length | 1.750" |
| Rod End Head Diameter | 1.75" |
| Rod End Head Width | 0.875" |
| Rod End Misalign Angle | 24 degrees |
| Jam Nut Included | No |
| Heat Treated | Yes |
| Load Capacity | 25000 lbs. |
| GTIN Code | 806990044204 |
| Sold in Quantity | Each |
