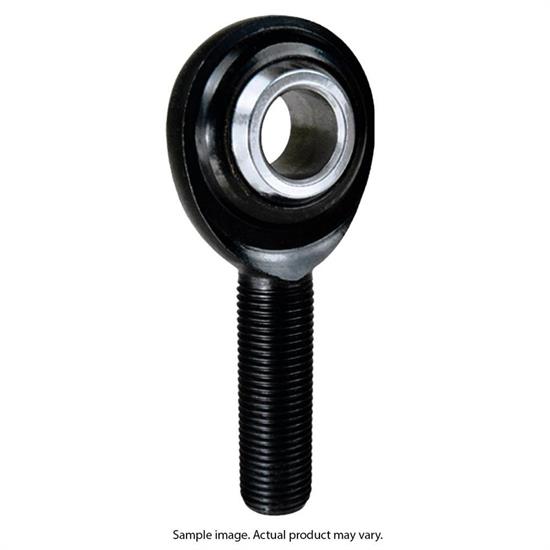

QA1 PCML10 PCM Series Rod End, Chromoly Steel, 2-Piece, Each
QA1 PCML10 PCM Series Rod End, Chromoly Steel, 2-Piece, Each

QA1 PCML10 PCM Series Rod End, Chromoly Steel, 2-Piece, Each

Universal Fit, LH Male Thread Type, Male Threads/Eyelet Rod End Attachment, Chromoly, Black

0 Reviews | 0 Answered Questions
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
QA1 PCML10 PCM Series Rod End, Chromoly Steel, 2-Piece, Each
QA1 PCML10 PCM Series Rod End, Chromoly Steel, 2-Piece, Each
QA1 PCML10 PCM Series Rod End, Chromoly Steel, 2-Piece, Each
X
QA1 PCML10 PCM Series Rod End, Chromoly Steel, 2-Piece, Each
Zoomed In Image
Part # 721PCML10
$11.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Thread Type:
LH Male
Rod End Attachment:
Male Threads/Eyelet
Thread Pitch:
5/8"-18
Material Type:
Chromoly
Hole Diameter:
0.625"
Rod End Style:
Metal-to-metal
Rod End Construction:
2-piece
Grease Fitting:
No
Finish:
Black Oxide
Color:
Black
Thread Length:
1.625"
Rod End Head Diameter:
1.5"
Rod End Head Width:
0.75"
Rod End Misalign Angle:
26 degrees
Jam Nut Included:
No
Heat Treated:
Yes
Load Capacity:
18000 lbs.
MFG. Part #:
PCML10
GTIN Code:
806990003065
Sold in Quantity:
Each

Info

QA1 offers its PCM and PCM-T Chromoly Steel Series rod ends. These black oxide coated rod ends offer superior load ratings over carbon steel two-piece rod ends and are available as metal-to-metal or PTFE lined.

Ball

  • 52100 Bearing Stee
  • Heat Treated
  • Hard Chrome Plated
  • Precision Ground

Body

  • Chromoly Steel
  • Heat Treated
  • Black Oxide Coated
