QA1 NMR8 N Series Rod End, Carbon Steel, 3-Piece, Each
QA1 NMR8 N Series Rod End, Carbon Steel, 3-Piece, Each
Ridetech

|

#76890002896

QA1 NMR8 N Series Rod End, Carbon Steel, 3-Piece, Each

Thread:

Right Hand

Left Hand

$129.00

/each

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, RH Male Thread Type, Stainless Steel

    See more details

    Key Specs

    Thread TypeRH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch1-1/4"-12
    Material TypeStainless Steel
    Hole Diameter0.562"
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Ridetech 90002896 Details

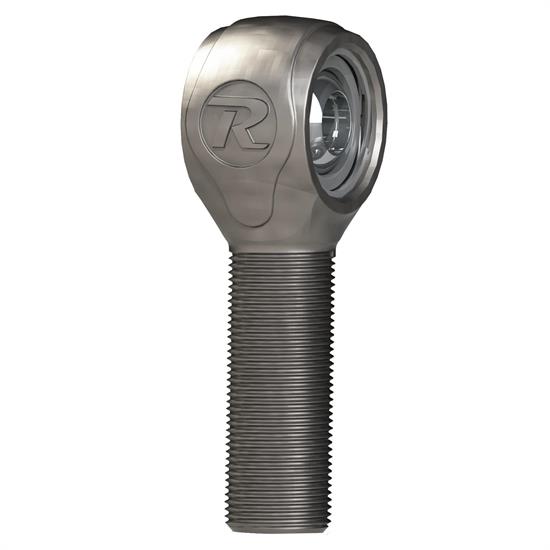

    R-Joint XL rod end with 1 ¼”-12 right hand thread. Includes spacers to create 9/16? I.D. and 2-5/8? width. Other bolt sizes and width’s also available.

    FEATURES:

    R-Joints are a revolutionary rod end design that provides low friction, full range articulation, long service life, lateral stability and quiet operation.

    Articulates in 3 planes 360 degree axial rotation and 50 degrees of total lateral rotation.

  • 17-4 investment cast stainless steel housing with rolled threads.
  • Polished stainless ball and RTX10 composite cage provides consistent low friction movement.
  • Special RTX10 composite cage needs NO lubrication.
  • Self cleaning design…movement not affected by ANY water, grit, dirt, or debris.
  • Spring loaded closure keeps mechanism tight and rattle free for LIFE!

    R-Joint XL Dimensions and Articulation:

    Thread Sizes: 1.25-12 RH

  • Through Bolt Size: 9/16”
  • Total Articulation: 50 deg

    R-Joint XL Material Specs:

  • Ball: 304 Stainless Steel
  • Composite: RTX10
  • Wave Spring: 17-7 Stainless Steel
  • Retainer Ring: 302 Stainless Steel
  • Housing: 17-4 Stainless Steel
  • Spacers: 303 Stainless Steel
  • Housing Manufacturing:

    • R-Joint XL housing is investment cast in the United States. The Casting then goes through a H900 Solution Anneal heat treatment to remove any crystallization. The heat treatment both increases tensile strength and ductility. All threading and machining is performed post heat treatment.

    Composite Yield [starts to deform]: 17,250lbs

  • Composite Failure: 17,750lbs
  • Housing Yield [starts to deform]: 95,000lbs
  • Housing Failure: 1.00 Thread: 109,850lbs
  • 1.25 Thread: 121,765lbs

    • Specs

    R-Joint XL Material Specs:

    • Ball: 304 Stainless Steel
    • Composite: RTX10
    • Wave Spring: 17-7 Stainless Steel
    • Retainer Ring: 302 Stainless Steel
    • Housing: 17-4 Stainless Steel
    • Spacers: 303 Stainless Steel
    • Housing Manufacturing:

    R-Joint XL housing is investment cast in the United States. The Casting then goes through a H900 Solution Anneal heat treatment to remove any crystallization. The heat treatment both increases tensile strength and ductility. All threading and machining is performed post heat treatment.

    Ridetech 90002896 Specifications

    KEY SPECS
    MFG. Part #90002896
    BrandRidetech
    Thread TypeRH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch1-1/4"-12
    Material TypeStainless Steel
    Hole Diameter0.562"
    Rod End StyleDelrin Lined Spherical Bearing
    Rod End Construction3-piece
    Grease FittingNo
    FinishNatural
    ColorNatural
    Bushing MaterialDelrin
    Jam Nut IncludedNo
    GENERAL
    Thread Length1.250"
    Rod End Head Diameter2.625"
    Rod End Head Width2.625"
    Rod End Misalign Angle50 degrees
    Heat TreatedYes
    NotesIncludes spacers to create 9/16" I.D. and 2-5/8" width.
    GTIN Code840123512185
    Sold in QuantityEach
