Product Summary

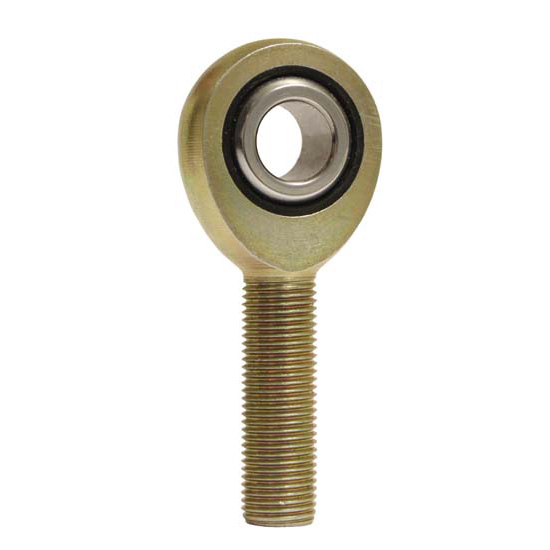

Universal Fit, LH Male Thread Type, Steel, Zinc Plated

    Key Specs

    MFG. Part #NML4
    BrandQA1
    Material TypeSteel

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    QA1's Injection Molded Carbon Steel rod ends are generally appropriate for low load, moderate oscillation applications. These PTFE Nylon 12 reinforced rod ends are protective coated for corrosion resistance and are available with left and right hand threads. This series features a molded race compound designed to provide low friction, low moisture absorbing properties and high wear resistance. QA1's Injection Molded Series design is unique in the industry since no holes need to be drilled in the rod end body, thereby allowing the rod end to maintain its full strength and integrity.

    Ball

    • 52100 Bearing Steel
    • Heat Treated
    • Hard Chrome Plated
    • Precision Ground

    Race

    • Reinforced Nylon 12 With PTFE

    Body

    • Carbon Steel
    • Protective Coated

    Specifications

    KEY SPECS
    MFG. Part #NML4
    BrandQA1
    Material TypeSteel
    GENERAL
    Thread TypeLH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch1/4"-28
    Hole Diameter0.250"
    Rod End StyleNylon/PTFE Lined
    Rod End Construction3-piece
    Grease FittingNo
    FinishZinc Plated
    ColorNatural
    Thread Length1.000"
    Rod End Head Diameter0.75"
    Rod End Head Width0.375"
    Rod End Misalign Angle16 degrees
    Jam Nut IncludedNo
    Heat TreatedYes
    Load Capacity2470 lbs.
    GTIN Code806990024053
    Sold in QuantityEach
