#721NFR7S

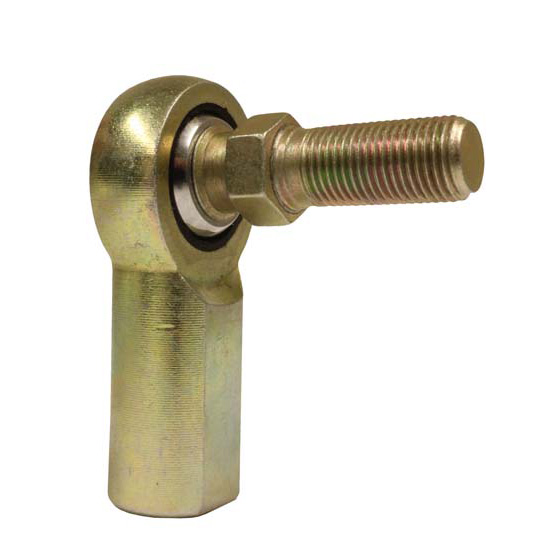

QA1 NFR7S N Series Rod End, Carbon Steel, 1-Piece, Each, Stud
$7.99
each
Factory Shipped
$8.99
Save $1.00
This part will be shipped by the manufacturer. We estimate this item will ship on or before December 5th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Female Thread Type, Steel, Natural
See more details
Key Specs
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Stud |
| Thread Pitch | 7/16"-20 |
| Material Type | Steel |
| Hole Diameter | 0.438" |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 NFR7S Details
QA1 NFR7S Details
QA1's Injection Molded Carbon Steel rod ends are generally appropriate for low load, moderate oscillation applications. These PTFE Nylon 12 reinforced rod ends are protective coated for corrosion resistance and are available with left and right hand threads.This series features a molded race compound designed to provide low friction, low moisture absorbing properties and high wear resistance. QA1's Injection Molded Series design is unique in the industry since no holes need to be drilled in the rod end body, thereby allowing the rod end to maintain its full strength and integrity.
Ball
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Race
- Reinforced Nylon 12 with PFTE
Body
- Carbon Steel
- Protective Coated
QA1 NFR7S Specifications
QA1 NFR7S Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | NFR7S |
| Brand | QA1 |
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Stud |
| Thread Pitch | 7/16"-20 |
| Material Type | Steel |
| Hole Diameter | 0.438" |
| Rod End Style | Nylon/PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Rod End Misalign Angle | 14 degrees |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.062" |
| Rod End Head Diameter | 1.812" |
| Rod End Head Width | 0.562" |
| Heat Treated | Yes |
| Load Capacity | 5350 lbs. |
| Notes | 7/16"-20 Pivot stud thread |
| GTIN Code | 806990024329 |
| Sold in Quantity | Each |
