#721NFR3S

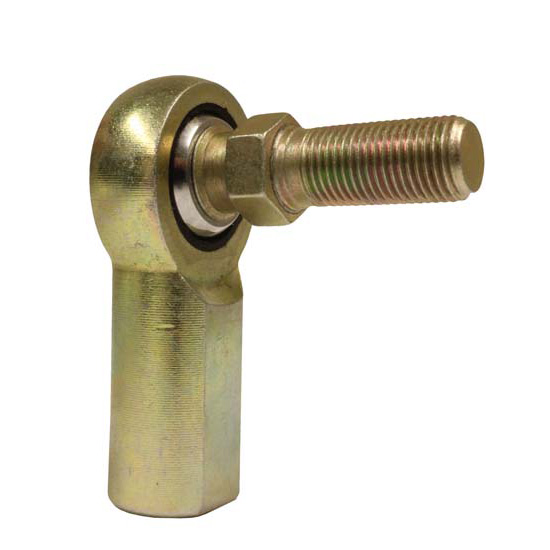

QA1 NFR3S N Series Rod End, Carbon Steel, 1-Piece, Each
$6.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before April 4th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Female Thread Type, Steel, Natural
See more details
Key Specs
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Stud |
| Thread Pitch | 3/16" (10-32) |
| Material Type | Steel |
| Hole Diameter | 0.190" |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 NFR3S Details
QA1 NFR3S Details
- QA1 NFR3S N Series Rod End
- Carbon Steel
- 1-Piece
- 10-32 RH NF
QA1 NFR3S Specifications
QA1 NFR3S Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | NFR3S |
| Brand | QA1 |
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Stud |
| Thread Pitch | 3/16" (10-32) |
| Material Type | Steel |
| Hole Diameter | 0.190" |
| Rod End Style | Nylon/PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Rod End Misalign Angle | 13 degrees |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 0.562" |
| Rod End Head Diameter | 1.062" |
| Rod End Head Width | 0.312" |
| Heat Treated | Yes |
| Load Capacity | 1210 lbs. |
| Notes | 3/16" (10-32) Pivot stud thread |
| GTIN Code | 806990024046 |
| Sold in Quantity | Each |
