Product Summary

Universal Fit, LH Female Thread Type, Steel, Natural

    Key Specs

    Thread TypeLH Female
    Rod End AttachmentFemale Threads/Eyelet
    Thread Pitch5mm x 0.8
    Material TypeSteel
    Hole Diameter0.438"

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

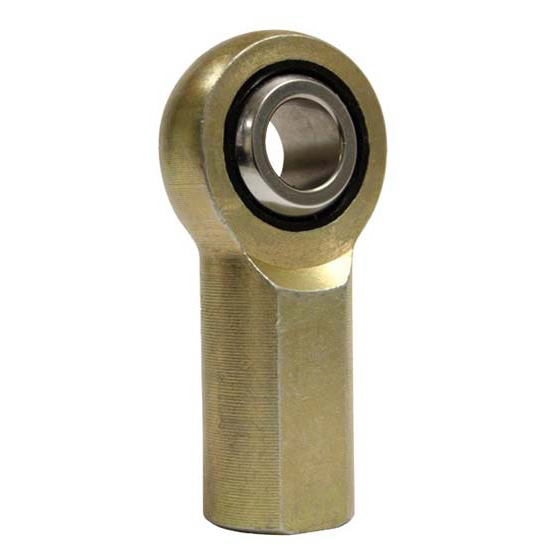

    QA1 NFL7 Details

    QA1's Injection Molded Carbon Steel rod ends are generally appropriate for low load, moderate oscillation applications. These PTFE Nylon 12 reinforced rod ends are protective coated for corrosion resistance and are available with left and right hand threads.This series features a molded race compound designed to provide low friction, low moisture absorbing properties and high wear resistance. QA1's Injection Molded Series design is unique in the industry since no holes need to be drilled in the rod end body, thereby allowing the rod end to maintain its full strength and integrity.

    Ball

    • 52100 Bearing Steel
    • Heat Treated
    • Hard Chrome Plated
    • Precision Ground

    Race

    • Reinforced Nylon 12 with PFTE

    Body

    • Carbon Steel
    • Protective Coated

    QA1 NFL7 Specifications

    KEY SPECS
    MFG. Part #NFL7
    BrandQA1
    Thread TypeLH Female
    Rod End AttachmentFemale Threads/Eyelet
    Thread Pitch5mm x 0.8
    Material TypeSteel
    Hole Diameter0.438"
    Rod End StyleNylon/PTFE Lined
    Rod End Construction3-piece
    Grease FittingNo
    FinishZinc Plated
    ColorNatural
    Rod End Misalign Angle14 degrees
    Jam Nut IncludedNo
    GENERAL
    Thread Length1.062"
    Rod End Head Diameter1.812"
    Rod End Head Width0.562"
    Heat TreatedYes
    Load Capacity5350 lbs.
    GTIN Code806990024312
    Sold in QuantityEach
