QA1 MXFR10 Metric X Series Rod End, Female, 10mm Bore, 10X1.5 6H RH
QA1 MXFR10 Metric X Series Rod End, Female, 10mm Bore, 10X1.5 6H RH
QA1

|

#721MXFR10

QA1 MXFR10 Metric X Series Rod End, Female, 10mm Bore, 10X1.5 6H RH

$19.99

/each

Factory Shipped

$20.85

Save $0.86


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, RH Female Thread Type, Chromoly, Natural

    See more details

    Key Specs

    Thread TypeRH Female
    Rod End AttachmentFemale Threads/Eyelet
    Thread Pitch10mm x 1.5
    Material TypeChromoly
    Hole Diameter10.000"
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    QA1 MXFR10 Details

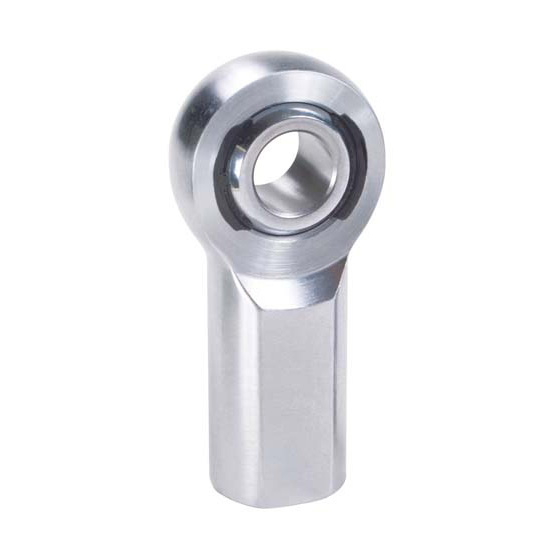

    For the ultimate in performance rod ends, look no further than Qa1'sMXF Chromoly Steel Series female rod ends. These metric heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. MXF Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out.

    Ball

    • 52100 Bearing Steel
    • Heat Treated
    • Hard Chrome Plated
    • Precision Ground

    Race

    • Nylon/PTFE
    • Self-Lubricating
    • Self-Sealing

    Body

    • Chromoly Steel
    • Heat Treated
    • Protective Coated for Corrosion
    • Resistance

    Exclusive Features

    • Metal to Metal Support for Heavy
    • Shock Loads Increased Cross-Sectional
    • Thickness for Greater Tensile Strength

    Guides & Documents

    Warranty (QA1)

    QA1 MXFR10 Specifications

    KEY SPECS
    MFG. Part #MXFR10
    BrandQA1
    Thread TypeRH Female
    Rod End AttachmentFemale Threads/Eyelet
    Thread Pitch10mm x 1.5
    Material TypeChromoly
    Hole Diameter10.000"
    Rod End StyleNylon/PTFE Lined
    Rod End Construction3-piece
    Grease FittingNo
    FinishZinc Plated
    ColorNatural
    Bushing MaterialPTFE
    Jam Nut IncludedNo
    GENERAL
    Thread Length21"
    Rod End Misalign Angle17 degrees
    Heat TreatedYes
    GTIN Code806990070043
    Sold in QuantityEach
