Product Summary

Universal Fit, RH Male Thread Type, Chromoly, Natural

    Key Specs

    MFG. Part #MHMR10Z-1
    BrandQA1
    Material TypeChromoly

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

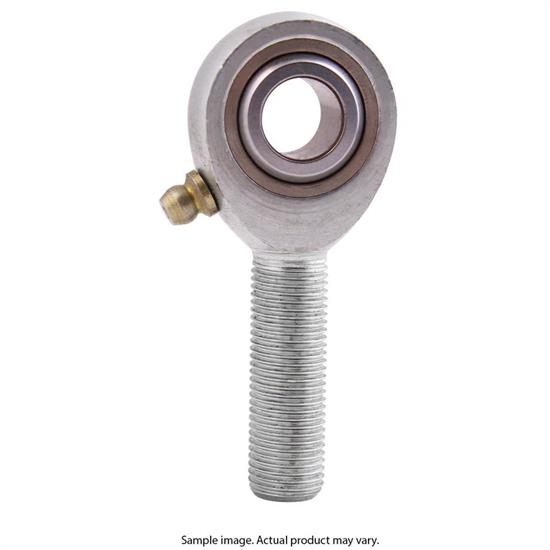

    QA1's MHM Series rod ends are a traditional three-piece chromoly steel male rod end. These precision rod ends are heat treated and are available in right and left hand threads. Grease fittings and stud configurations are available.

    Ball

    • 52100 Bearing Steel
    • Heat Treated
    • Hard Chrome Plated
    • Precision Ground

    Race

    • Chromoly Heat Treated
    • Steel Corrosion and Wear Resistant

    Body

    • Chromoly Steel
    • Heat Treated
    • Protective Coated for Corrosion Resistance

    Specifications

    KEY SPECS
    MFG. Part #MHMR10Z-1
    BrandQA1
    Material TypeChromoly
    GENERAL
    Thread TypeRH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch10mm x 1.25
    Hole Diameter10 mm
    Rod End StyleAlloy Steel Race
    Rod End Construction3-piece
    Grease FittingYes
    FinishZinc Plated
    ColorNatural
    Thread Length2.125"
    Rod End Head Diameter2.75 mm
    Rod End Head Width1.375 mm
    Rod End Misalign Angle17 degrees
    Center Hole to End of Shank4.125"
    Jam Nut IncludedNo
    Heat TreatedYes
    Load Capacity76200 lbs.
    GTIN Code806990134851
    Sold in QuantityEach
