Product Summary

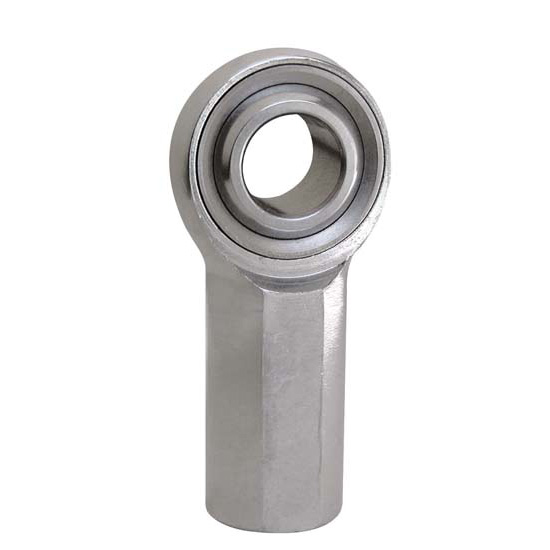

Universal Fit, RH Female Thread Type, Chromoly, Natural

    Key Specs

    MFG. Part #MHFR6
    BrandQA1
    Material TypeChromoly

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    QA1's MHF Series female rod ends are a traditional three-piece chromoly steel rod end. These metric precision rod ends are heat treated and are available in right and left hand threads.

    Ball

    • 52100 Bearing Steel
    • Heat Treated Hard Chrome Plated
    • Precision Ground

    Race

    • Chromoly Heat Treated Steel
    • Corrosion and Wear Resistant

    Body

    • Chromoly Steel Heat
    • Treated Protective Coated for Corrosion Resistance"

    Specifications

    KEY SPECS
    MFG. Part #MHFR6
    BrandQA1
    Material TypeChromoly
    GENERAL
    Thread TypeRH Female
    Rod End AttachmentFemale Threads/Eyelet
    Thread Pitch6mm x 1.0
    Hole Diameter6 mm
    Rod End StyleAlloy Steel Race
    Rod End Construction3-piece
    Grease FittingNo
    FinishZinc Plated
    ColorNatural
    Thread Length14 mm
    Rod End Head Diameter19 mm
    Rod End Head Width9 mm
    Jam Nut IncludedNo
    Heat TreatedYes
    GTIN Code806990016584
    Sold in QuantityEach
