#721MHFR14T1

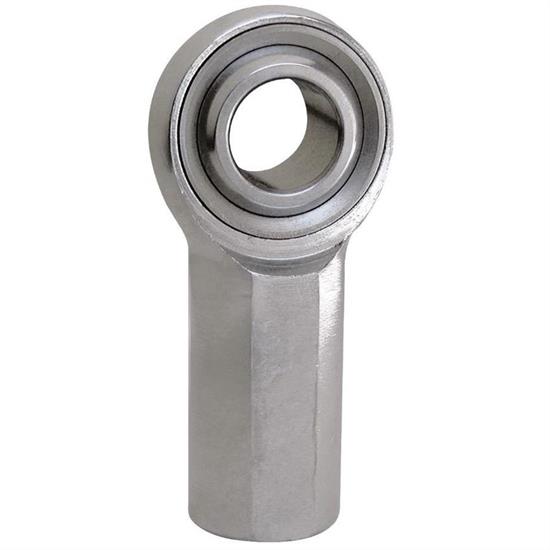

QA1 MHFR14T-1 MH Series Rod End, 14mm x 1.5 RH Steel
$32.99
/each
Factory Shipped
$42.89
Save $9.90
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Eyelet |
| Thread Pitch | 14mm x 2.0 |
| Material Type | Chromoly |
| Hole Diameter | 14.000" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 MHFR14T-1 Details
QA1 MHFR14T-1 Details
With a PTFE liner added to the traditional three-piece chromoly steel female rod end, QA1's MHF-T Series metric rod ends are ideal for a variety of applications. True precision rod ends, the MHF-T Series are available in right and left hand threads and studded configurations are available.
Ball
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Race
- Low Carbon Steel
- Corrosion and Wear Resistant
- PTFE Lined
Body
- Chromoly Steel
- Heat Treated
- Protective Coated for Corrosion Resistance
Guides & Documents
QA1 MHFR14T-1 Specifications
QA1 MHFR14T-1 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | MHFR14T-1 |
| Brand | QA1 |
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Eyelet |
| Thread Pitch | 14mm x 2.0 |
| Material Type | Chromoly |
| Hole Diameter | 14.000" |
| Rod End Style | PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 27" |
| Rod End Ball Diameter | 25.4" |
| Rod End Head Diameter | 34.75" |
| Rod End Head Width | 13.5" |
| Rod End Misalign Angle | 21 degrees |
| Overall Thickness | 19" |
| Center Hole to End of Shank | 57 mm |
| Heat Treated | Yes |
| GTIN Code | 806990134103 |
| Sold in Quantity | Each |
