Product Summary

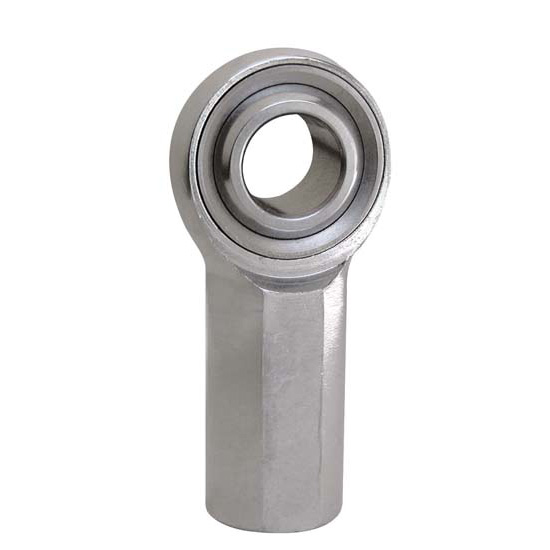

Universal Fit, RH Female Thread Type, Chromoly, Natural

    Key Specs

    MFG. Part #MHFR12T
    BrandQA1
    Material TypeChromoly

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    With a PTFE liner added to the traditional three-piece chromoly steel female rod end, QA1's MHF-T Series metric rod ends are ideal for a variety of applications. True precision rod ends, the MHF-T Series are available in right and left hand threads.

    Ball

    • 52100 Bearing Steel
    • Heat Treated Hard Chrome Plated
    • Precision Ground

    Race

    • Low Carbon Steel Corrosion and Wear Resistant
    • PTFE Lined

    Body

    • Chromoly Steel
    • Heat Treated Protective Coated for Corrosion Resistance"

    Specifications

    KEY SPECS
    MFG. Part #MHFR12T
    BrandQA1
    Material TypeChromoly
    GENERAL
    Thread TypeRH Female
    Rod End AttachmentFemale Threads/Eyelet
    Thread Pitch12mm x 1.75
    Hole Diameter12 mm
    Rod End StyleAlloy Steel/PTFE Lined
    Rod End Construction3-piece
    Grease FittingNo
    FinishZinc Plated
    ColorNatural
    Thread Length24 mm
    Rod End Ball Diameter22.23 mm
    Rod End Head Diameter30 mm
    Rod End Head Width12 mm
    Rod End Misalign Angle17 degrees
    Overall Thickness16 mm
    Center Hole to End of Shank50 mm
    Jam Nut IncludedNo
    Heat TreatedYes
    GTIN Code806990016867
    Sold in QuantityEach
