| Position | Front |
| Spring Rate | 250 lbs. |
| Shock Adjustability | Double Adjustable |
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
Need help?
855.313.9176Quick and Easy Returns

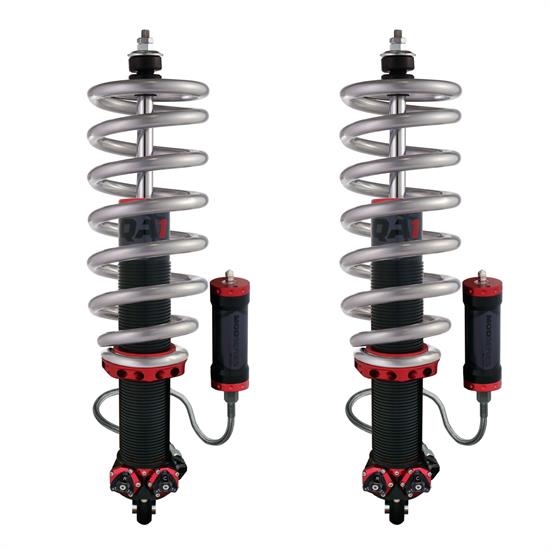

Return PolicyThese QA1 GM Pro Coil Systems are available for 1978-1996 GM B-Bodies, 1988-1998 Chevy/GMC C1500s, 1971-1996 Impalas and Full-Size GM vehicles, including Full-Size Chevy, Buick, Oldsmobile, and Pontiac models, and are a great option for anyone looking for fully adjustable ride height and valving control. Choose a spring rate and adjustability that fits your driving style, adjust the valving to match and you are on your way. These shocks also utilize a fully threaded body that allows you to adjust your ride height for the perfect stance or to finely tune the weight balance for superior handling.
Specially designed for QA1's Pro Coil Systems, the American-made lightweight high travel springs* have fewer coils and a smaller wire diameter, resulting in increased travel due to the larger distance between the coils. They reduce unsprung weight and react faster, optimizing suspension performance. Multiple spring rate options are also available and have been successfully tested in various applications, from casual street driving to hard core race applications.
Adjustable Pro Coil System Features:
Additional MOD™ Series Features:
SPRING RATE CHART
The chart below is a general guideline for selecting spring rates for QA1's GM Front Pro Coil Shock Systems. Spring rates may vary depending on applications, usage, and personal preference.
| FRONT AXLE WEIGHT IN LBS. | |||||||||
| 1500-1600 | 1601-1700 | 1701-1800 | 1801-1900 | 1901-2000 | 2001-2100 | 2101-2200 | 2201-2300 | 2301-2400 | 2401-2600 |
|---|---|---|---|---|---|---|---|---|---|
| 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 750 |
AVERAGE VEHICLE WEIGHT
Not sure what your vehicle weighs? See our detailedwith Vehicle Weights for general guidelines on determining the approximate weight of popular vehicles.
Application
Fits: 1978-1996 GM B-Bodies; 1988-1998 Chevy/GMC C1500; 1971-1996 Impala and Full-Size GM - includes Chevy, Buick, Oldsmobile, and Pontiac
| Part Numbers | |||||||||
| Vehicle Weight | MOD™ Series Adjustable | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1500-1600 lbs. | MG507-11250C | ||||||||
| 1601-1700 lbs. | MG507-11300C | ||||||||
| 1701-1800 lbs. | MG507-10350C | ||||||||
| 1801-1900 lbs. | MG507-10400C | ||||||||
| 1901-2000 lbs. | MG507-10450C | ||||||||
| 2001-2100 lbs. | MG507-10500C | ||||||||
| 2101-2200 lbs. | MG507-10550C | ||||||||
| 2201-2300 lbs. | MG507-10600C | ||||||||
| 2301-2400 lbs. | MG507-10650C | ||||||||
| 2401-2600 lbs. | MG507-10750C | ||||||||
Charts
Guides & Documents
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | MG507-11250C |
| Brand | QA1 |
| Position | Front |
| Spring Rate | 250 lbs. |
| Shock Adjustability | Double Adjustable |
| Shock Type | Twin Tube |
| Shock Body Material | Aluminum |
| Upper Shock Mount | Stud |
| Lower Shock Mount | Bushed Eyelet |
| Height Adjustable | Yes |
| Finish | Anodized |
| GENERAL | |
| Shock Body Size | Large Body |
| Shock Body Type | Threaded |
| Compressed Length Range | 9.00" to 9.99" |
| Compressed Length | 9.63" |
| Extended Length Range | 14.00" to 14.99" |
| Extended Length | 14.5" |
| Number of Valving Selections | 324 |
| Coilover Kit Included | Yes |
| Coilover Springs Included | Yes |
| Bushing Material | Rubber |
| Body Diameter | 3" |
| Sold in Quantity | Kit |
| Adjustable | Yes |
| Hardware Included | Yes |
| Crossmember Included | No |
| Welding Required | No |
| Gas Charged | Yes |
| Color | Black |
| Mounting Bracket Included | No |
| Spring Finish | Powder Coated |
| Spring Color | Silver |
| GTIN Code | 806990154941 |
Be the first to ask a question.
1978-1984 Buick Electra
1978-1985 Buick LeSabre
1991-1996 Buick Roadmaster
1958-1981 Chevy Bel Air
1958-1972 Chevy Biscayne
1988-1998 Chevy C1500
1966-1991 Chevy Caprice
1958 Chevy Del Ray
1971-1996 Chevy Impala
1988-1998 GMC C1500
