Product Summary

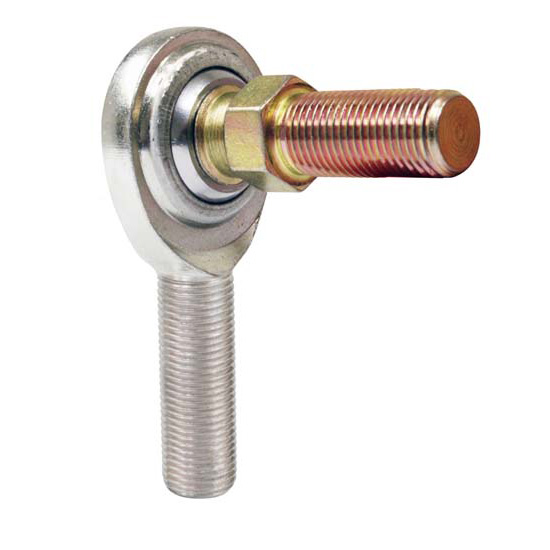

Universal Fit, RH Male Thread Type, Steel, Zinc Plated

    Key Specs

    MFG. Part #MCMR8S
    BrandQA1
    Material TypeSteel

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    Metric For a traditional carbon steel metric two-piece rod end, QA1 offers its CM Carbon Steel Series rod ends. These metric metal-to-metal rod ends are protective coated for corrosion resistance and are available in both metric and inch dimensions with left and right hand threads.

    Ball

    • 52100 Bearing Steel
    • Heat Treated
    • Hard Chrome Plated
    • Precision Ground

    Body

    • Carbon Steel
    • Protective Coated for Corrosion Resistance

    Notes: Load ratings apply only to rod ends without grease fittings. For ratings with grease fittings, please contact QA1. For sizes 2, 3, 3-4, 4, 4-5, 5 and 5-6, grease fittings are not available.

    Specifications

    KEY SPECS
    MFG. Part #MCMR8S
    BrandQA1
    Material TypeSteel
    GENERAL
    Thread TypeRH Male
    Rod End AttachmentMale Threads/Stud
    Thread Pitch8mm x 1.25
    Hole Diameter8 mm
    Rod End StyleMetal-to-metal
    Rod End Construction2-piece
    Grease FittingNo
    FinishZinc Plated
    ColorNatural
    Thread Length25 mm
    Rod End Head Diameter22.25 mm
    Rod End Head Width12 mm
    Rod End Misalign Angle20 degrees
    Center Hole to End of Shank1.562"
    Jam Nut IncludedNo
    Heat TreatedYes
    Load Capacity3435 lbs.
    Notes8mm Pivot stud thread
    GTIN Code806990125378
    Sold in QuantityEach
