#721MCFR8T

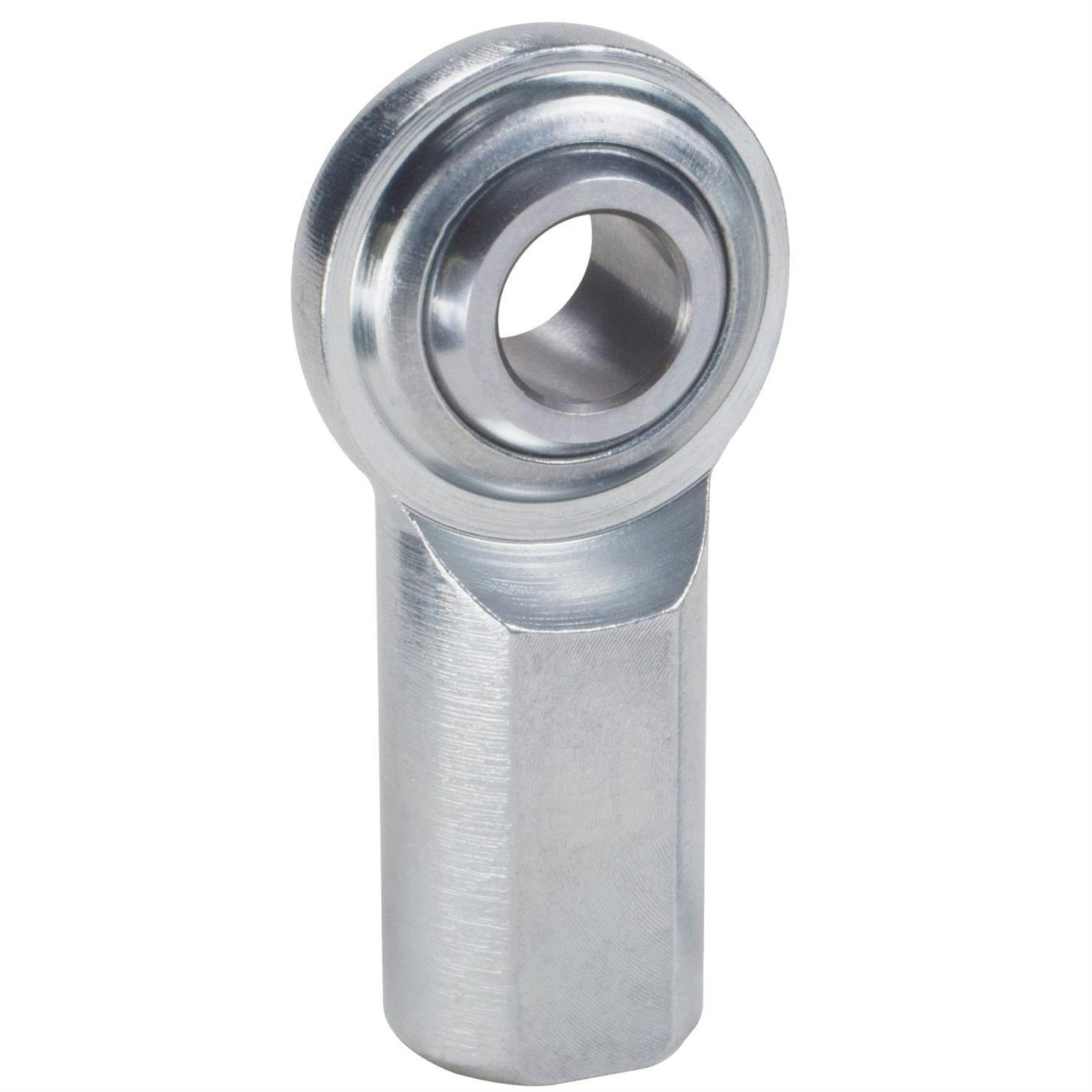

QA1 MCFR8T C Series Rod End, Carbon Steel, 2-Piece, Each
Discontinued
This item is currently not available
Shop all QA1 MC Series Rod Ends
Key Specs
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Eyelet |
| Thread Pitch | 8mm x 1.25 |
| Material Type | Steel |
| Hole Diameter | 8.000 mm |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 MCFR8T Details
QA1 MCFR8T Details
For a self-lubricating version of a traditional carbon steel two-piece female rod end, QA1 offers its CF-T Carbon Steel Series rod ends with a PTFE liner. These rod ends are protective coated for corrosion resistance and are available in inch dimensions with left and right hand threads.
Ball
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Body
- Carbon Steel
- Protective Coated for Corrosion Resistance
- PTFE Lined
Guides & Documents
QA1 MCFR8T Specifications
QA1 MCFR8T Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | MCFR8T |
| Brand | QA1 |
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Eyelet |
| Thread Pitch | 8mm x 1.25 |
| Material Type | Steel |
| Hole Diameter | 8.000 mm |
| Rod End Style | PTFE Lined |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 17 mm |
| Rod End Head Diameter | 22.25 mm |
| Rod End Head Width | 12 mm |
| Rod End Misalign Angle | 20 degrees |
| Heat Treated | Yes |
| Load Capacity | 10046 lbs. |
| Sold in Quantity | Each |
