Product Summary

Universal Fit, LH Female Thread Type, Steel, Natural

    Key Specs

    Thread TypeLH Female
    Rod End AttachmentFemale Threads/Stud
    Thread Pitch5mm x 0.8
    Material TypeSteel
    Hole Diameter5 mm

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

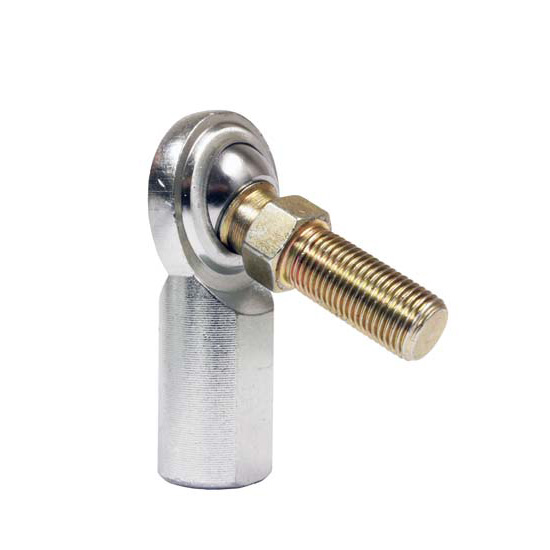

    QA1 MCFL5S Details

    For a traditional carbon steel two-piece female rod end, QA1 offers its MCF Carbon Steel Series metric rod ends. These metal-to-metal rod ends are protective coated for corrosion resistance and are available with left and right hand threads.

    Ball

    • 52100 Bearing Steel
    • Heat Treated
    • Hard Chrome Plated
    • Precision Ground

    Body

    • Carbon Steel
    • Protective Coated for Corrosion Resistance

    QA1 MCFL5S Specifications

    KEY SPECS
    MFG. Part #MCFL5S
    BrandQA1
    Thread TypeLH Female
    Rod End AttachmentFemale Threads/Stud
    Thread Pitch5mm x 0.8
    Material TypeSteel
    Hole Diameter5 mm
    Rod End StyleMetal-to-metal
    Rod End Construction2-piece
    Grease FittingNo
    FinishZinc Plated
    ColorNatural
    Jam Nut IncludedNo
    GENERAL
    Thread Length14 mm
    Rod End Head Diameter16 mm
    Rod End Head Width8 mm
    Heat TreatedYes
    Notes5mm Pivot stud thread
    GTIN Code806990125149
    Sold in QuantityEach
