#721KMR67T

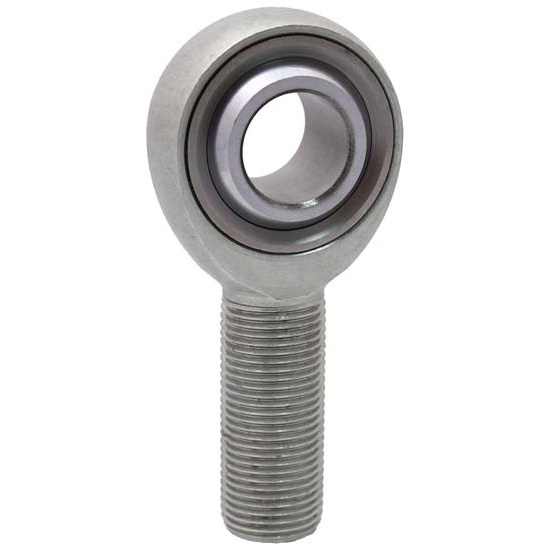

QA1 KMR6-7T K Series Rod End, Carbon Steel, 3-Piece, Each
$18.49
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 7/16"-20 |
| Material Type | Steel |
| Hole Diameter | 0.375" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyQA1 KMR6-7T Details
QA1 KMR6-7T Details
Add a PTFE liner to the traditional three-piece carbon steel rod end and you have QA1's KM-T Carbon Steel Series rod ends. Available in right and left hand threads and inch dimensions, these truly are precision rod ends.
Ball
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Race
- Alloy Steel
- Corrosion and Wear Resistant
- PTFE Lined
Body
- Carbon Steel
- Protective Coated for Corrosion Resistance
Guides & Documents
QA1 KMR6-7T Specifications
QA1 KMR6-7T Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | KMR6-7T |
| Brand | QA1 |
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 7/16"-20 |
| Material Type | Steel |
| Hole Diameter | 0.375" |
| Rod End Style | PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Bushing Material | PTFE |
| Jam Nut Included | No |
| GENERAL | |
| Rod End Misalign Angle | 10 degrees |
| Heat Treated | Yes |
| Load Capacity | 7180 lbs. |
| GTIN Code | 806990004246 |
| Sold in Quantity | Each |
